Eurovac Products

Application:

• 1 to 6 Tech Source Capture Welding Systems

Part Number:

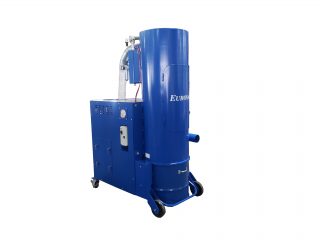

• EIP-W05-18144003:  5HP & 18” Filter Separator Portable
• EIP-W05-24144003:  5HP & 24” Filter Separator Portable
• EIP-W10-18144003:  10HP & 18” Filter Separator Portable
• EIP-W10-24144003:  10HP & 24” Filter Separator Portable
• EIP-W20-24144003:  15HP & 24” Filter Separator Portable
• EIP-P20-24244003:  20HP & 24” Filter Separator Portable

Equipment Specs:

• Blower:  Regenerative Blower set to run for 20,000+ hours of continuous use
• Filtration: Cyclonic filter separator, after nanofiber cartridge filter (168 & 220 sq. ft. filter media) (99.93% efficient at 3 microns or larger) and final manual compressed air pulse jet cleaning
• Canister: 20 Gallon (5HP & 10HP), 30 Gallon (15HP & 20HP)
• Controls:  Starter with overload protection
• Electrical: 208-240, 460 and 575 volts. 3 phase, 60 hertz
• Inlets:  3″OD (5HP & 10HP), 4”OD (15HP), 5”OD (20HP)

System Performance:

• 5HP System
• Vacuum – 100″WC
• Flow – 160 CFM

• 10HP System
• Vacuum – 100″WC
• Flow – 310 CFM

• 15HP System
• Vacuum – 95″WC
• Flow – 510 CFM

• 20HP System
• Vacuum – 110″WC
• Flow – 780 CFM

Includes:

• Silencer, Exhaust Cap & Air Filter Regulator (For Pulse Jet Cleaning)
• Pre-wiring from panel to pump
• Magnahelic gauge (Indicates when pressure differential is too high and filters need replacement)

Not Included:

• Electrical Disconnect
• Three phase cord and plug

Optional Additions:

• HEPA Filtration (HEP-R17-1B0300RP)
• 2.3HP to 5HP:  208-230-240, 1 Phase, 60 Hz Electrical
• Inlet Manifolds: Qty 3 to 6 – 1.5” Inlets
