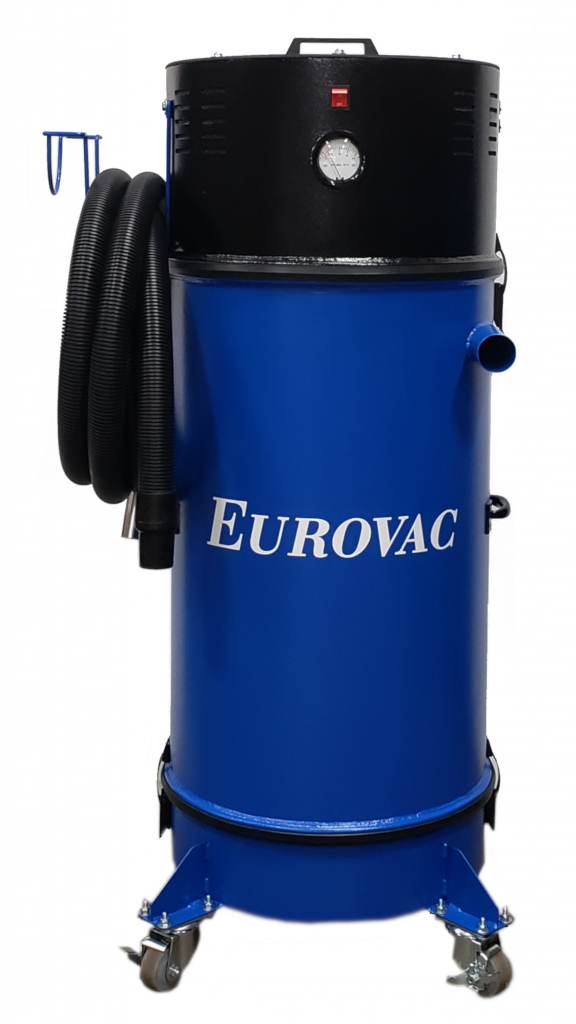

Eurovac Products

Application:

• 1 Tech Source Capture Welding System

Part Numbers:

• POR-P46-B02F0005

Equipment Specs:

• Blower:  QTY 2 – 2.3HP Brush Motors (4000 Hrs Intermitent Duty) – 1300 watt motors
• Filtration: Cyclonic filter separator & final nanofiber filter (99.93% at 3 microns or larger)
• Controls (On/Off):  2 Position Switch
• Timer:  If system is run for 40 minutes continuously, it will automatically shut off
• Electrical: 1 Phase 60 Hertz 220/120 (4 wire: 2 Hot, 1 Neutral & 1 Ground). NEMA #L1420P plug provided
• Canister: 5 Gallon
• Inlet:  2″

System Performance:

• 100 CFM at 103″ WG
• Vacuum – 137″WC
• Flow – 224 CFM

Includes:

• 2″ x 17′ Hose
• Hose Hanger
