Eurovac Products

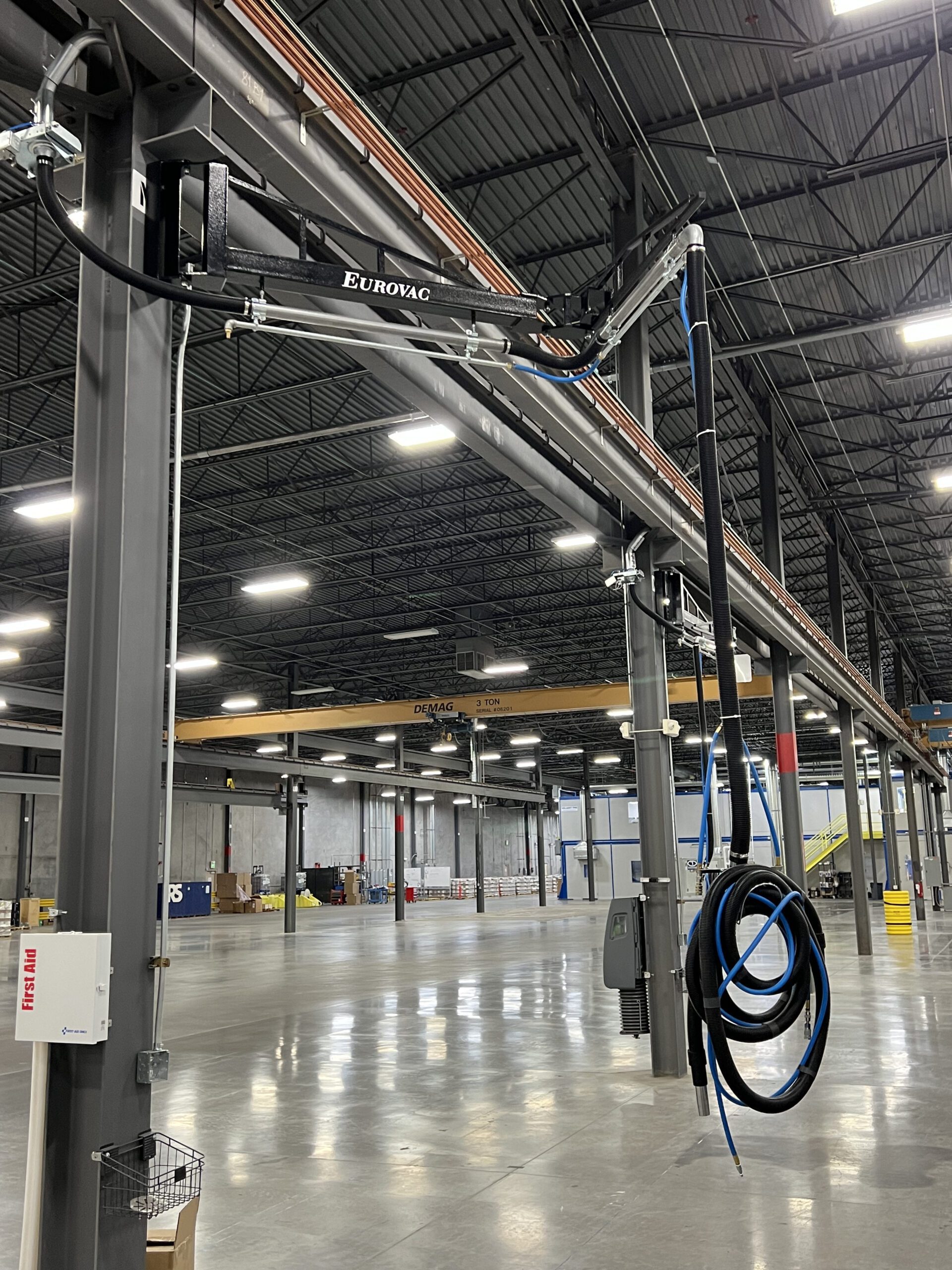

Extension Booms
The addition of an extension boom maybe needed if a hanging or wall mount drop does not quite give you the work coverage required. Extension booms come in different lengths and with the option of an additional pivot point to ensure the a drop will conveniently reach the entire work area.
Part Number:
- HVB-SPD-1000S0N0: 6” x 10’ Single Pivot Extension Boom w/ Single Drop
- HVB-SPD-1500S0N0: 6” x 15’ Single Pivot Extension Boom w/ Single Drop
- HVB-SPD-2000S0N0: 6” x 20’ Single Pivot Extension Boom w/ Single Drop
- HVB-SPD-2500S0N0: 6” x 25’ Single Pivot Extension Boom w/ Single Drop
- HVB-DPD-0604S0N0: 6” x 10’ Double Pivot Extension Boom w/ Single Drop
- HVB-DPD-1005S0N0: 6” x 10’ Double Pivot Extension Boom w/ Single Drop
- HVB-DPD-1307S0N0: 6” x 15’ Double Pivot Extension Boom w/ Single Drop
- HVB-DPD-1510S0N0: 8” x 20’ Double Pivot Extension Boom w/ Single Drop
Equipment Specs:
- Construction: Fully welded steel construction
- Finished: Texture Blue powder coated painted finish
- Base: Heavy duty 180 degree swivel base with safety stop
- Tubes: Galvanized tubing to minimize friction loss and ensure static dissipation
- Joints: Static conductive flex hose connections
Includes:
- 2” x 10’ Static Conductive Hose (from boom to drop height)
- Single Vacuum Inlet
- Chrome Hose Hanger
Optional Additions:
- Upgrade from Single to Double Vacuum Inlet
- Compressed Air for running in conjunction with the vacuum line for operation of pneumatic tools
- Backing plate with threaded rod and hardware for mounting boom to wall or post
