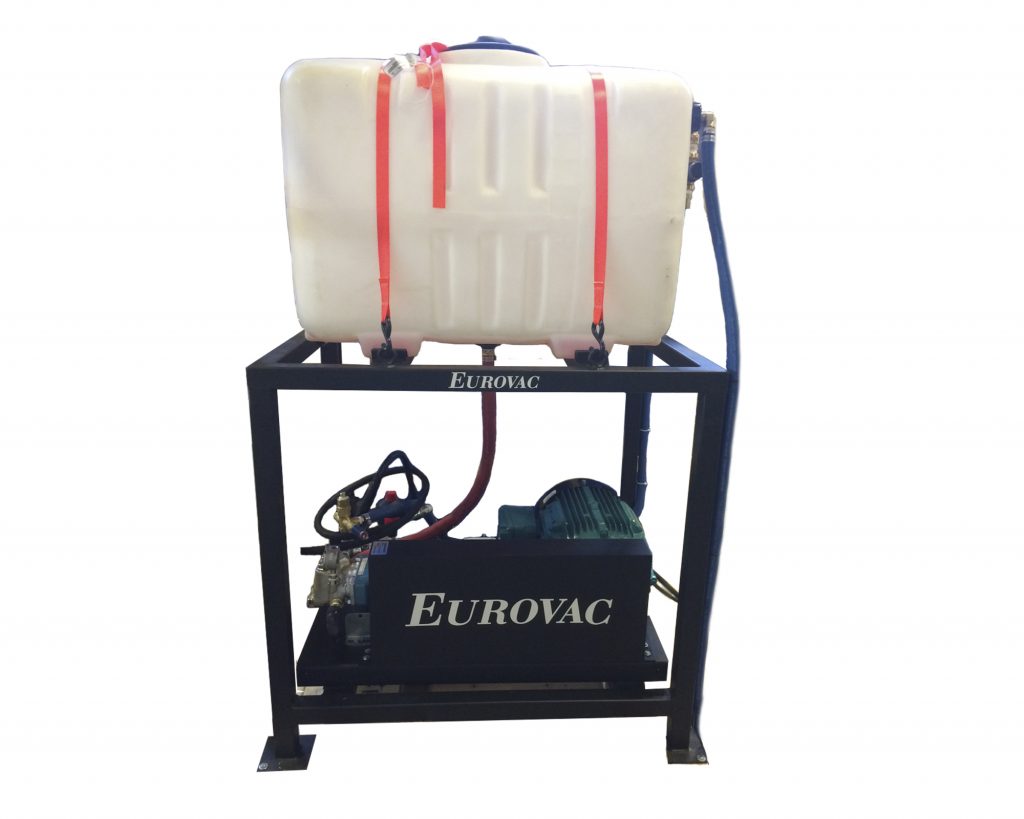

20HP & 30HP Pressure Washer Systems

Application:

  • 3 & 5 Tech Pressure Washer System

Part Numbers:

  • SYS-PRE-320H4603:  20HP Pressure Washer
  • SYS-PRE-530H4603:  30HP Pressure Washer

Equipment Specs:

  • 20HP: 12 gpm @ 1500 psi maximum
  • 30HP: 16 gpm @ 1500 psi maximum
  • VFD controlled (for energy saving and extended system component life)
  • 100 Gallon (20HP) & 200 Gallon (25HP & 30HP) feed tank with pilot line for system activation and low water level shut down and auto reset
  • Automatic start/stop with off delay timer
  • Automatic high temp shut down (145deg)
  • Belt driven ceramic plunger pump
  • Adjustable pressure regulator with bypass hose
  • Back up safety relief valve
  • Discharge pressure gauge
  • Surge Relief Assembly w/ Bracket for absorbing back pressure when the trigger gun closes
  • Heavy duty base/frame with vibration isolation pads and protective pump cover
  • Water Connection:  1-1/4″ to 1-1/2″ (20HP & 30HP)
  • Electrical: 208-240, 460 and 575 volts. 3 phase, 60 hertz
