Eurovac Products

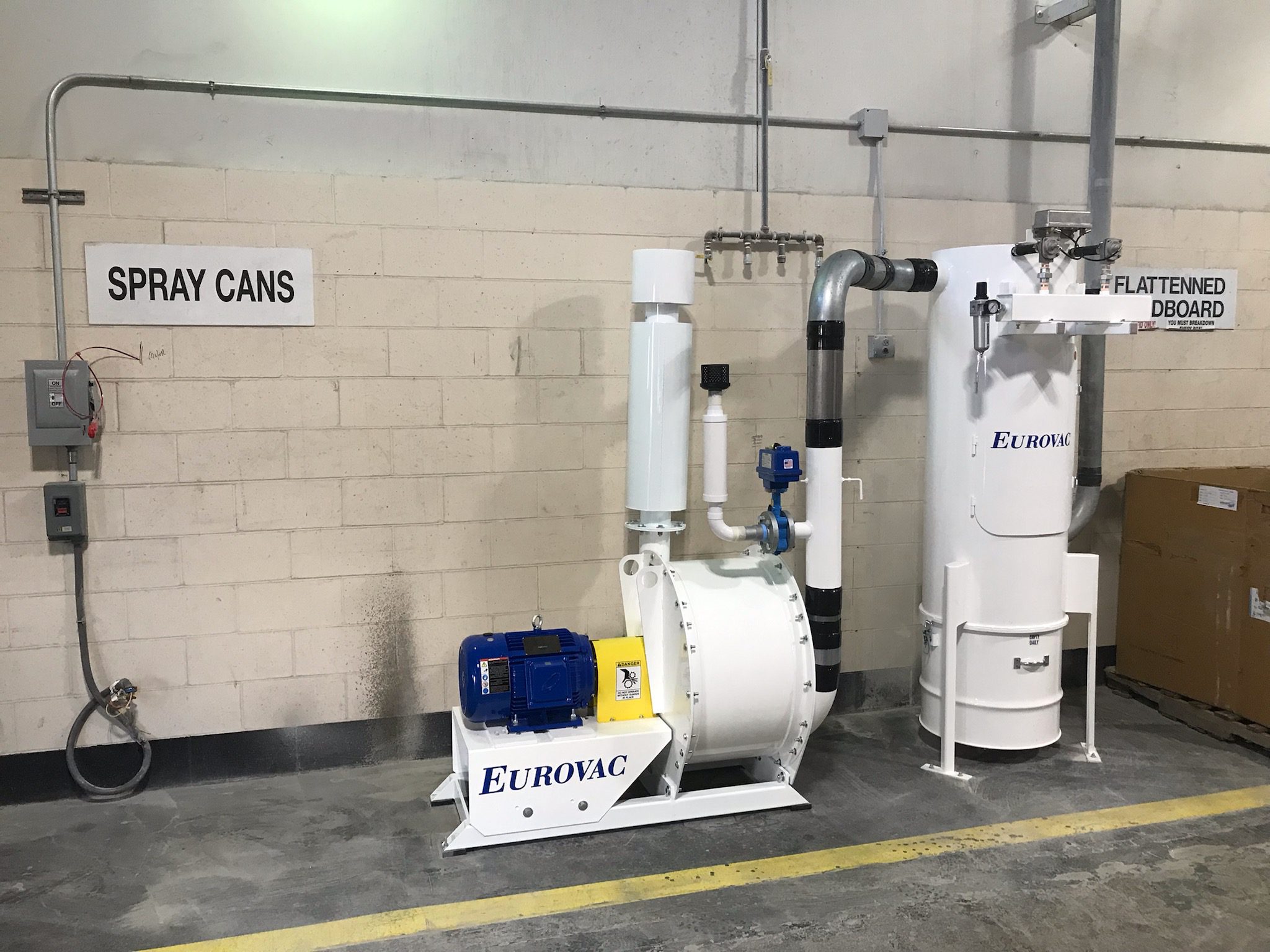

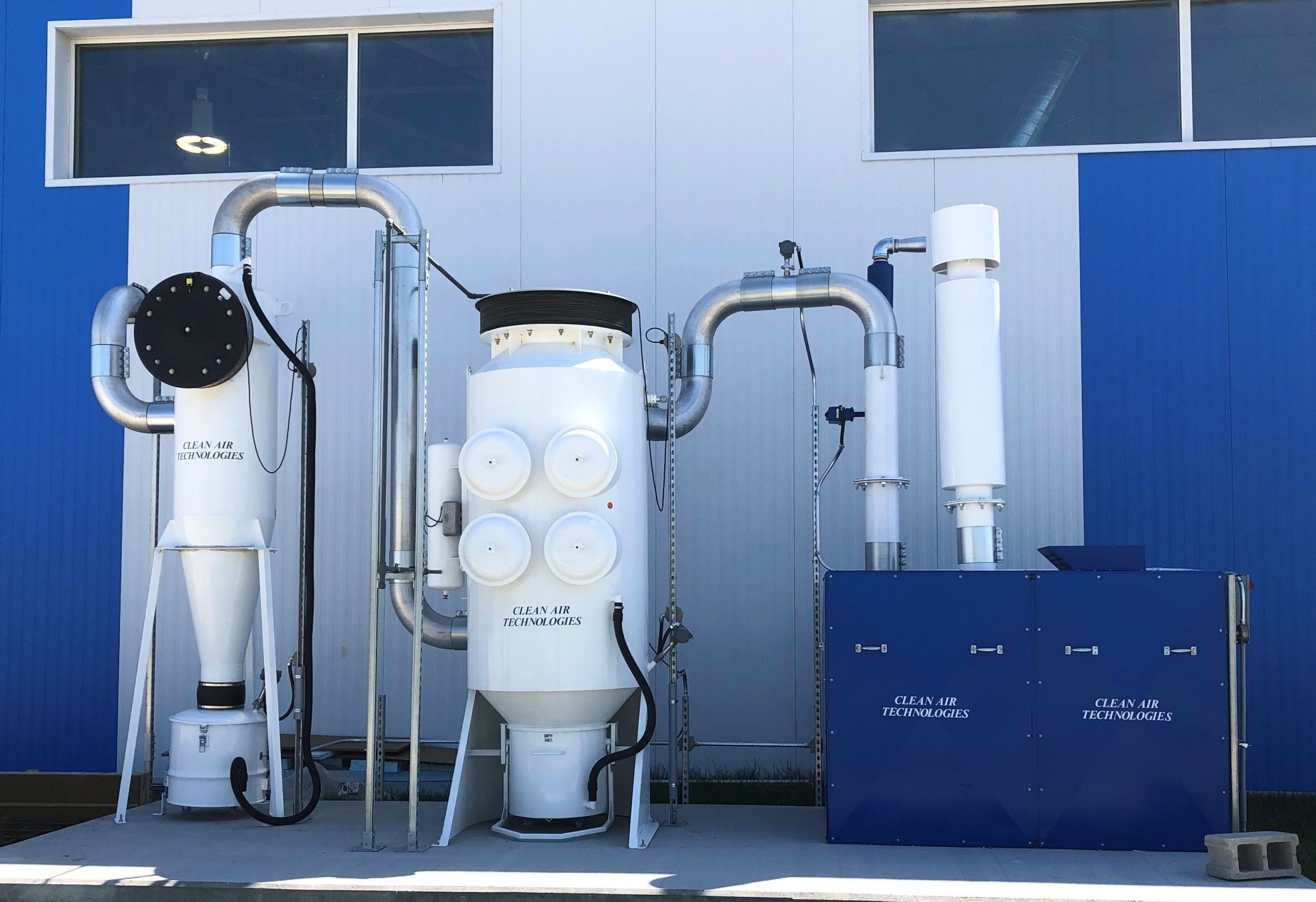

EIII – 10HP to 75HP Centrifugal Pump Central Vacuum Systems

Application:

  • 3 to 23 Tech Housekeeping Vacuum System
  • 3 to 23 Tech Grinder Vacuum System
  • 6 to 38 Tech Orbital Sander Vacuum System

Part Numbers:

  • SYS-10C-6030FS2B:  10HP System
  • SYS-15C-6030FS2B:  15HP System
  • SYS-20C-6030FS2B:  20HP System
  • SYS-25C-6030FS3B:  25HP System
  • SYS-30C-6030FS3B:  30HP System
  • SYS-40C-6042FS6B:  40HP System
  • SYS-50C-6042FS6B:  50HP System
  • SYS-60C-6048FS6B:  60HP System
  • SYS-75C-6066FS9B:  75HP System

Equipment Specs:

  • Blower:  Centrifugal Multi-Stage Turbine Blower (energy efficient and rated for 20,000 hours of continuous operation)
  • Filtration: 24” to 66” Cyclonic filter separator, after polyester cartridge filters (99.93% at 3 microns or larger) and final automatic pulse jet cleaning
  • Canister: 30 to 55 Gallon
  • Electrical: 208-240, 460 and 575 volts. 3 phase, 60 hertz Premium Efficiency TEFC Motor
  • Blower Relief: Manual ball valve for ensuring blower does not go into “surge”
  • Inlet:  4″OD to 8”OD

Control Panel Specs:

  • NEMA 4 Enclosure (Indoor/Outdoor)
  • Start/Stop
  • Overload Protection
  • Run Light
  • 120v Step Down Transformer (ie: Control remote on/off switches)
  • 24VDC Sequential On Demand Auto Pulse Jet. Includes Proportional Type “On Line” Cleaning, “Off Line” Cleaning
  • Filter Differential Pressure (dp) Display
  • Dirty Filter Fault Shutdown/Light (c/w external reset)
  • General Pulse Jet Fault Light

System Performance:

  • Vacuum – 6”Hg (81.6″WC) to 8”Hg (108.8”WC)
  • Flow – 300 CFM to 1900 CFM

Includes:

  • Silencer, 4 Anti Vibration Pads & Wedge Anchors
  • Tube, Bends & Fittings Between Blower & Separator
  • Air Filter Regulator (For Pulse Jet Cleaning)

Not Included:

  • Electrical Disconnect

Optional Additions:

  • 400CFM Max HEPA Filtration (HEP-R16-1B0400RP)
  • 600CFM Max HEPA Filtration (HEP-R18-1B0600RP)
  • 900CFM Max HEPA Filtration (HEP-R24-1B0900RP)
  • 1600CFM Max HEPA Filtration (HEP-R24-2B1600RP)
  • 2400CFM Max HEPA Filtration (HEP-R24-3B2400RP)
  • See Separator Options for Explosion Relief, Rotary Air Locks and more
