Eurovac Solutions

Animal Bedding Waste Removal

Eurovac Central Vacuum Systems offers a wide range of options to meet the demands of the lab science market.

  • Ability to size equipment necessary for pneumatic conveyance of bedding materials.
  • The use of Stainless Steel components where necessary.
  • PLC controls design to assure quality performance.

Eurovac systems are manufactured with the highest standards and guarantee:

• Superior products designed to run all day, every day – with minimal maintenance requirements
• Superior filtration – all Eurovac systems have built-in primary cyclonic separation located ahead of the final bag or cartridge filters
• Properly engineered layouts

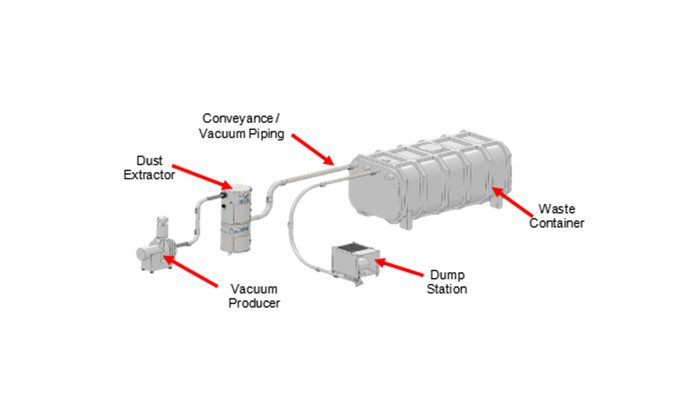

Vacuum Producers:
Eurovac has wide range of pumps that can be sized to achieve the vacuum power required to overcome the losses in the most demanding installation.

Vacuum Pipe:
We use 14- and 16-gauge graduated thin-walled Stainless Steel tubing and long radius bends. The pipe is coupled with three bolt compression clamps. Metal pipe is preferred because static electricity which can cause static shock does not build up in metal pipe versus PVC pipe.

Lab Science Components:
Eurovac has developed components for the pharmaceutical and lab science industry that have been proven to meet the project demands.  Eurovac has the ability to design, build, and install a system to meet your most demanding needs.

  • A

    Central Vacuum Systems (Industrial)

    We're the central vacuum specialists with products for every need and budget. Superior product designed to run all day, every day with minimal maintenance requirements. Superior filtration, all Eurovac systems have built-in primary cyclonic separation located ahead of the final bag or cartridge filters. Properly engineered layouts

    Read More
  • B

    Industrial - Drops, Pipe & Fittings

    Eurovac systems are designed for convenient use with vacuum drops hanging (2” vacuum hose attached to pipe overhead) or wall/pillar mounted (2” pipe running down the wall) close to the operators work station. If a technician is working with pneumatic tools, the vacuum drops typically get run in conjunction with the compressed air so the air and vacuum are working together. Systems will be designed with 2” tubing at the drops and graduating up to 8” (depending on system size) back at the central equipment which delivers a typical air speed of 4,500 feet per minute. Galvanized steel tube, bends and fittings are used to ensure system is grounded thus avoiding static electricity build up and potential shocks. As well, galvanized bends and fittings come standard with long radius sweeps which ensure your system is operating at its peak vacuum level.

    Read More
  • C

    Cartridge Dust Collectors

    Unlike many equipment manufacturers who are limited to only one or two types of dust collectors, Eurovac offers a wide variety of systems ranging from highly efficient vertical cartridges arrangement to integrated cyclonic separators when large amounts of dust are present in the air stream. The fully automated control panels ensure that minimal maintenance will be required. If no toxic fumes are generated in the process, it is possible to recycle clean air back in the facility. Depending on the nature of the dust or smoke, Eurovac will select certified high efficiency pleated filters or bags. The vessel robust steel construction may be equipped with NFPA safety features such as explosion vents or suppression devices. Our engineering staff will recommend energy conscious owners and plant managers the use of a variable frequency drive (VFD) if not all work stations are required to operate simultaneously.

    Read More

Animal Bedding Waste Removal Products

Additional Resources

  • Animal Bedding Clean Stage Schematic

  • Animal Bedding Soiled Stage Schematic
