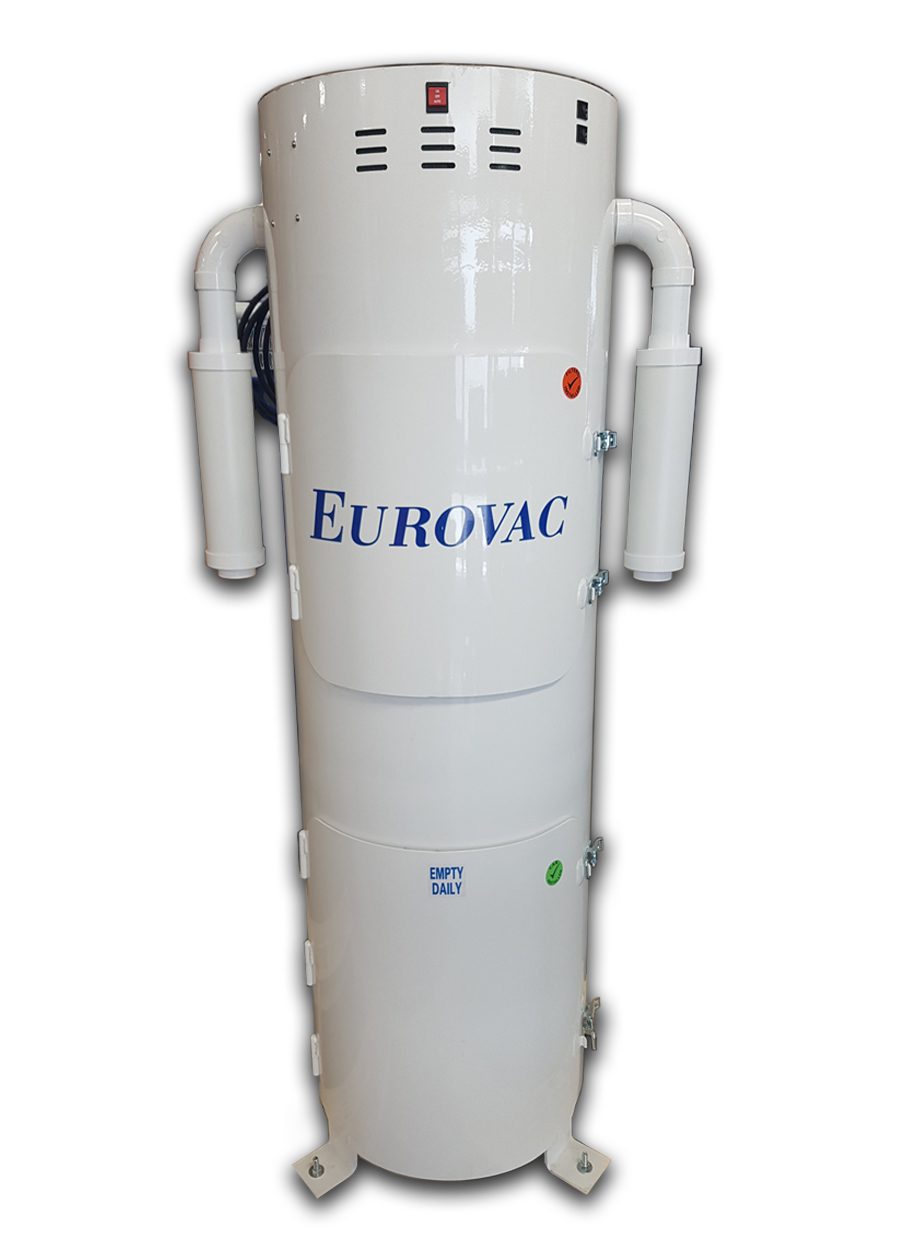

EII – 2.5HP Detail Vacuum System – Product

Product Details

Comprehensive information about this product

Construction: Fully welded steel construction
Finish: White powder coated painted finish
Blower: 2.5HP Brush Motor (4000 Hrs Intermittent Duty) – 1549 watt motor
Filtration: 18″ Cyclonic filter separator with final 4 bag filters
Canister: 10 Gal plastic tote canister
Controls (On/Off/Auto Switch): Set to Auto for wiring (24v) to Remote Start Switches. Controls include Automatic Shut Down After Set Period of Time (Auto shut down is adjustable from 1 to 30 minute’s)
Electrical: 115/1/60 – 13.9 amp (US / Canada) 15amp Circuit Req’d. Includes 12′ Electrical Cord
Inlet: 2″OD
Unit on Legs: (Wall mount version available upon request)
Dba: 70 @ 3M
Weight: 125 lbs

System wall mount bracket (SYS-050-164BS000)
2.5HP Brushless Motor (20,000 Hrs Continuous Use) – 20 Amp Circuit Required. Vacuum – 105″WC / Flow – 120 CFM
Blue Plastic Dome Lid For EII Central Systems. Highly recommended for wet areas
