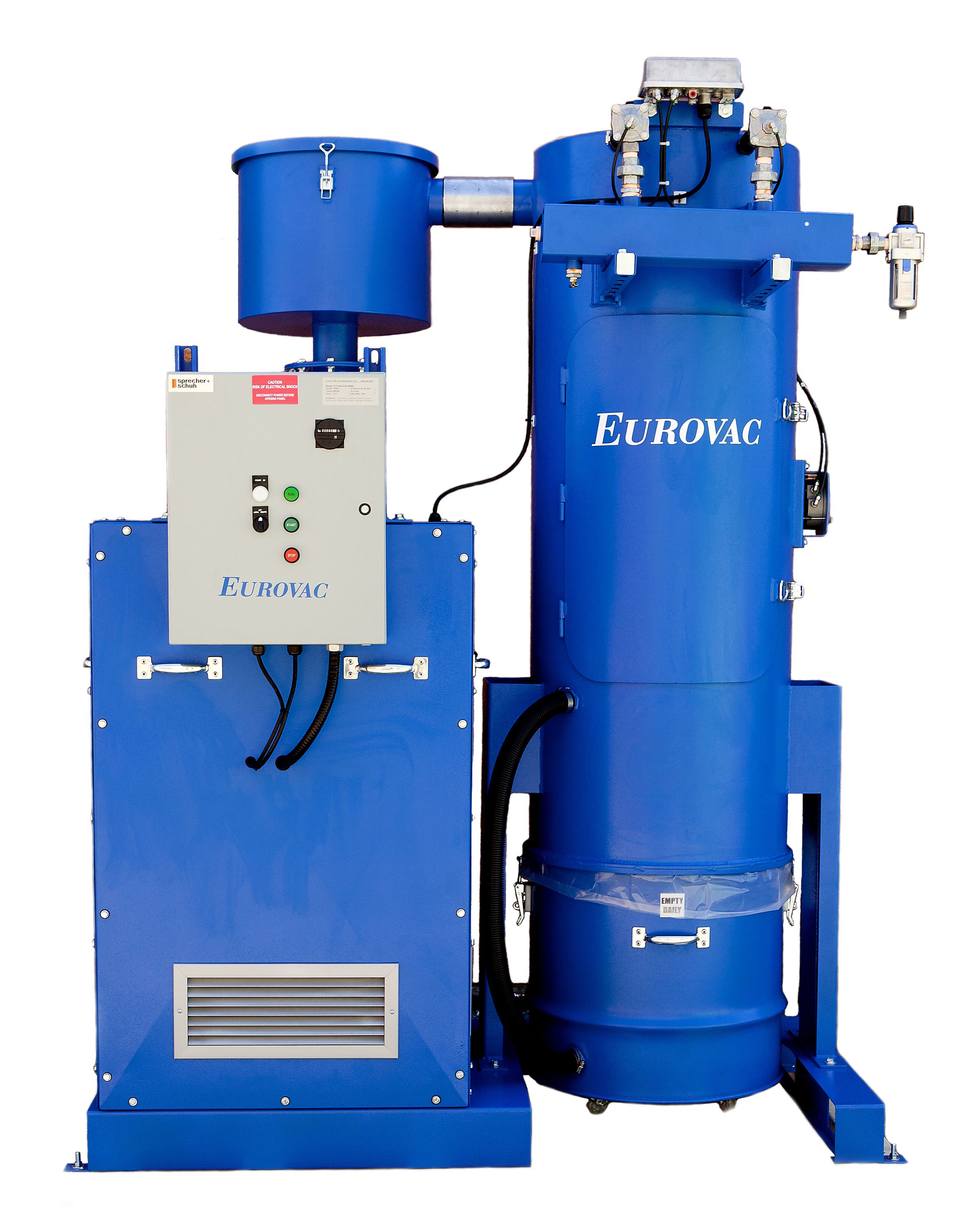

EI – 5HP to 15HP & 24″ Separator Central Industrial Vacuum Systems – Product

Product Overview

The EI 24” Separator Central Industrial Vacuum System offers high vacuum performance for one to six technicians operating depending on the type of source capture tools. The system is typically connected with galvanized tubing to conveniently located wall or hanging drops with a longest run of no more than 200’.

Product Details

Comprehensive information about this product

Application:

1 to 3 Tech Housekeeping Vacuum System
1 to 3 Tech Grinder Vacuum System
3 to 6 Tech Orbital Sander Vacuum System

Part Numbers:

EIC-P05-24234003: 5HP System
EIC-P10-24234003: 10HP System
EIC-P15-24234003: 15HP System

Equipment Specs:

Construction: Fully welded steel construction
Finish: Texture Blue powder coated painted finish
Design: Skid mount system (for easy transportation) which comes pre-wired from panel to pump and to the pulse jet cleaning
Blower: Regenerative Blower set to run for 20,000+ hours of continuous use
Filtration: Cyclonic filter separator, 2 after polyester cartridge filters (100 sq. ft. filter media) (99.93% efficient at 3 microns or larger) and final automatic pulse jet cleaning
Canister: 30 Gal
Electrical: 208-240, 460 and 575 volts. 3 phase, 60 hertz
Inlet: 3″OD

Control Panel Specs

NEMA 4 Enclosure (Indoor/Outdoor)
Start/Stop
Overload Protection
Run Light
120v Step Down Transformer (ie: Control remote on/off switches)
24VDC Sequential On Demand Auto Pulse Jet. Includes Proportional Type “On Line” Cleaning, “Off Line” Cleaning
Filter Differential Pressure (dp) Display
Dirty Filter Fault Shutdown/Light (c/w external reset)
General Pulse Jet Fault Light

System Performance:

Vacuum – 100″WC
Flow – 160 CFM

Includes

Silencer, Exhaust Cap, 4 Anti Vibration Pads & Wedge Anchors
Pre-wiring from panel to pump
Air Filter Regulator (For Pulse Jet Cleaning)

Not Included

Electrical Disconnect

Optional Additions

HEPA Filtration (HEP-R17-1B0300RP)
See Separator Options for Explosion Relief, Rotary Air Locks and more
