Product Details
Comprehensive information about this product
Application:
- 3 to 23 Tech Housekeeping Vacuum System
- 3 to 23 Tech Grinder Vacuum System
- 6 to 38 Tech Orbital Sander Vacuum System
Part Numbers:
- SYV-10C-9024FS2B: 10HP System
- SYV-15C-9030FS2B: 15HP System
- SYV-20C-9030FS2B: 20HP System
- SYV-25C-9030FS3B: 25HP System
- SYV-30C-9030FS3B: 30HP System
- SYV-40C-9042FS6B: 40HP System
- SYV-50C-9042FS6B: 50HP System
- SYV-60C-9048FS6B: 60HP System
- SYV-75C-9066FS9B: 75HP System
- SYV-100-9066FS9B: 100HP System
- SYV-125-9072FS9B: 125HP System
- SYV-150-9072FS9B: 150HP System
Equipment Specs:
- Construction: Fully welded steel construction
- Finish: Texture Blue powder coated painted finish

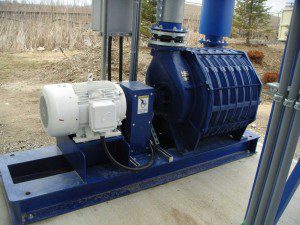

- Blower: Cast Iron Centrifugal Multi-Stage Turbine Blower (energy efficient and rated for 20,000 hours of continuous operation)
- Filtration: 24” to 72” Cyclonic filter separator, after polyester cartridge filters (99.93% at 3 microns or larger) and final automatic pulse jet cleaning
- Canister: 30 to 55 Gallon
- Electrical: 208-240, 460 and 575 volts. 3 phase, 60 hertz Premium Efficiency TEFC Motor
- Blower Relief: Manual ball valve for ensuring blower does not go into “surge”
- Inlet: 4″OD to 14”OD
Control Panel Specs:
- NEMA 4 Enclosure (Indoor/Outdoor)
- Start/Stop
- Overload Protection
- Run Light
- 120v Step Down Transformer (ie: Control remote on/off switches)
- 24VDC Sequential On Demand Auto Pulse Jet. Includes Proportional Type “On Line” Cleaning, “Off Line” Cleaning
- Filter Differential Pressure (dp) Display
- Dirty Filter Fault Shutdown/Light (c/w external reset)
- General Pulse Jet Fault Light
System Performance:
- Vacuum – 9”Hg (122.4″WC) to 15”Hg (204”WC)
- Flow – 300 CFM to 3650 CFM
Includes

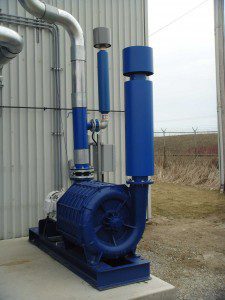

- Silencer, 4 Anti Vibration Pads & Wedge Anchors
- Tube, Bends & Fittings Between Blower & Separator
- Air Filter Regulator (For Pulse Jet Cleaning)
Not Included
- Electrical Disconnect
Optional Additions
- 400CFM Max HEPA Filtration (HEP-R16-1B0400RP)
- 600CFM Max HEPA Filtration (HEP-R18-1B0600RP)
- 900CFM Max HEPA Filtration (HEP-R24-1B0900RP)
- 1600CFM Max HEPA Filtration (HEP-R24-2B1600RP)
- 2400CFM Max HEPA Filtration (HEP-R24-3B2400RP)
- 3000CFM Max HEPA Filtration (HEP-R24-4B3000RP)
- 3800CFM Max HEPA Filtration (HEP-R30-4B3800RP)
- See Separator Options for Explosion Relief, Rotary Air Locks and more
