Name: Wet Downdraft Tables
Brand: Eurovac
Availability: InStock

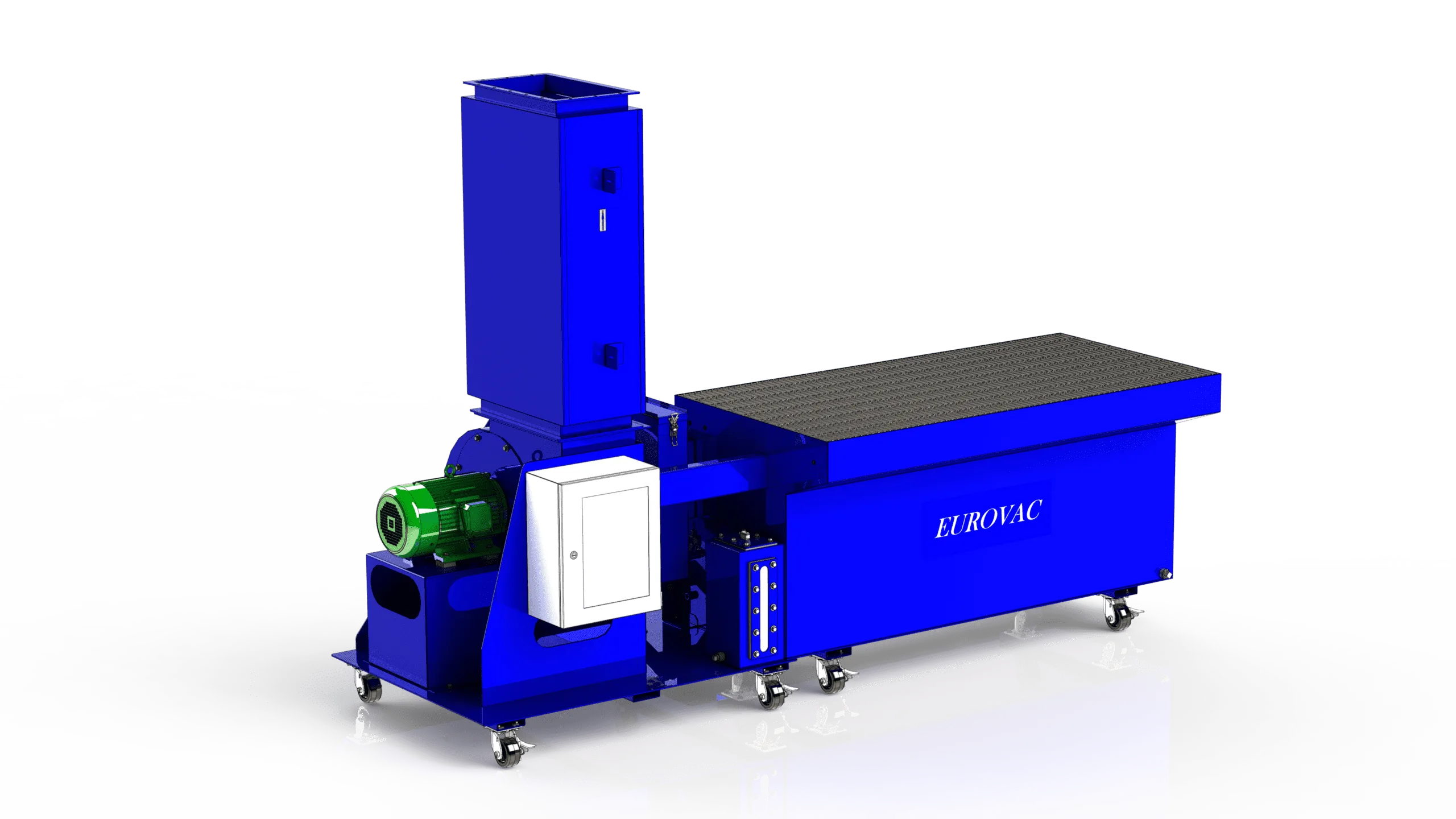

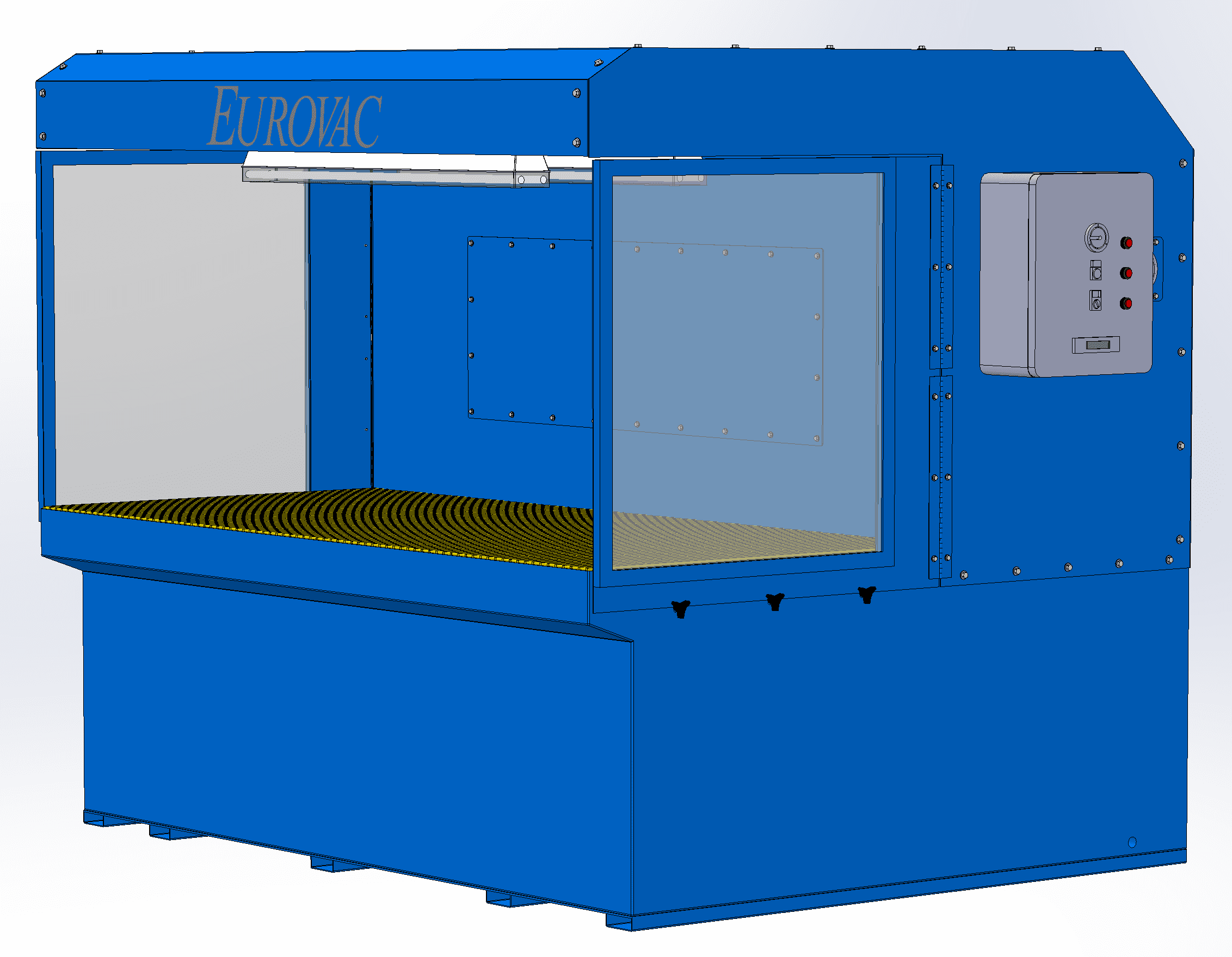

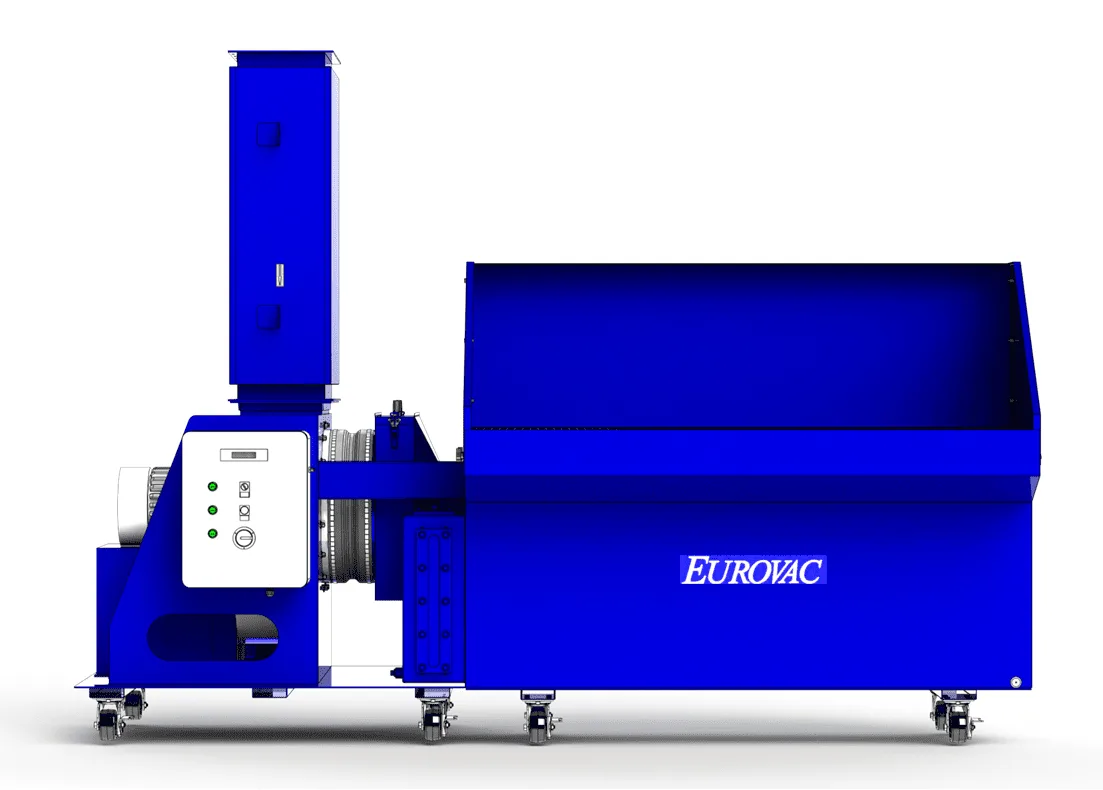

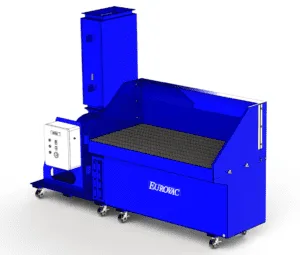

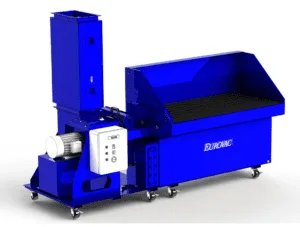

Wet Downdraft Tables

Product Overview

Eurovac Wet Downdraft Tables provide a user friendly solution for safely removing explosive dusts such as aluminum, magnesium and titanium. Particulate is pulled down through a venturi into a bed of water. Dust then passes through a set of baffles (entrapping the dust in the water) which settles to the bottom of the table. All systems meet NFPA and OSHA guidelines.

Product Details

Comprehensive information about this product

Part Numbers:

DDW-3X4-F4603000: 3’ x 4’ – 3HP Wet Downdraft Table
DDW-3X6-F4603000: 3’ x 6’ – 5HP Wet Downdraft Table
DDT-3X8-F4603000: 3’ x 8’ – 10HP Wet Downdraft Table
DDT-4X8-D4603000: 4’ x 8’ – 15HP Wet Downdraft Table

Equipment Specs:

Construction: Fully welded steel construction
Finish: Texture blue powder coated painted finish
Filtration: Initial venturi entry for deep penetration into the water and secondary baffles to completely mix the dust particulate with the water. Final stainless steel mesh descicant mist eliminator
Work Surface: Fiberglass Grating
Fan: Backward Incline Fan with Aluminum Impeller
Electrical: 208-240, 460 and 575 volts. 3 phase, 60 hertz Premium Efficiency TEFC Motor

Control Panel Specs:

NEMA 4/12 Enclosure (Indoor/Outdoor)
Single Button Start/Stop
Overload Protection
Run Light
Hour Meter
Automatic Water Fill based on differential pressure

Optional Additions

HEPA Filter Housings
Side & Back Walls
Back Draft Walls
LED Lights
Silencers
Rubber Table Top Matting
