Rotary Airlocks

Explosion Protection Devices & Separator Options

Product Overview

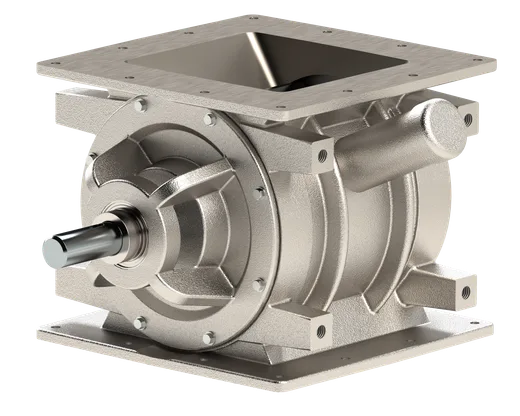

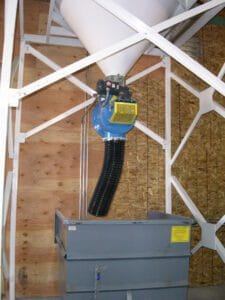

A rotary airlock is mounted to the dust collection discharge cone and transfers captured particulate to the canister below, while maintaining an air seal in the dust collection system.  Eurovac will design the airlock that is best suited for the type and volume of particulate that is being captured, to ensure it meters dust at a controlled rate, preventing clogs or overflow in the hopper.  Since the collector is vacuum sealed above the airlock, customers often purchase a second canister which allows the system to continue to run while they empty the canister that is full.  Rotary airlocks also serve as an important safety feature for explosive dust applications as they provide strength to the dust collection hopper which ensures explosive dust is channeled through the collector mounted relief vent.

Product Details

Comprehensive information about this product

Part Numbers:

  • MOT-ANC-AMD605B0:  6" Rotary Airlock - 3/4HP
  • MOT-ANC-AMD805B0:  8" Rotary Airlock - 3/4HP
  • MOT-ANC-AMD105B0:  10" Rotary Airlock - 3/4HP
  • MOT-ANC-AMD125B0:  12" Rotary Airlock - 1HP
  • MOT-ANC-AMD145B0:  14" Rotary Airlock - 1HP
  • MOT-ANC-AMD165B0:  16" Rotary Airlock - 1HP

Equipment Specs:

  • Housing: Cast Iron Housing & End Plates
  • Rotors: 8 Mild Steel Rotors
  • Rotor Tips: Adjustable Bevelled Mild Steel Rotor Tips
  • Horse Powers: 3/4HP or 1HP Drive Assembly w/ TEFC Enclosure, Roller Chain Drive & Guard & Outboard Bearings
  • Electrical: 208, 240, 460 or 575 Volts, 3 Phase, 60 Hertz
  • Rotor Speed (Capacity): 20RPM Rotor Speed (1 to 22 RPM Speeds Available Upon Request)

Control Panel Features:

  • Selector Switch (Manual, Automatic or Jog - Jog is for back/forth to free up particulate). Vacuum System Will Shut Down If There Is A Rotary Air Lock Issue
  • Empty Bin Feature: Airlock can be shut down to empty the bin below without shutting down the system

Includes

  • Support frame designed to suit a super sac or a variety of canister sizes (30 Gallon up to 6 Cubic Yard Dumpster)

Optional Additions

  • Discharge guard which is a mandatory safety feature for rotary airlocks with an open/exposed discharge
  • Stop sensor which gets fastened to the rotary airlock and notices when it has stopped and shuts the dust collection system down
  • Discharge blow through adaptor allows material to be conveyed to remote location
