Product Details
Comprehensive information about this product
Application:
- 1 to 6 Tech Source Capture Welding Systems
Part Numbers:

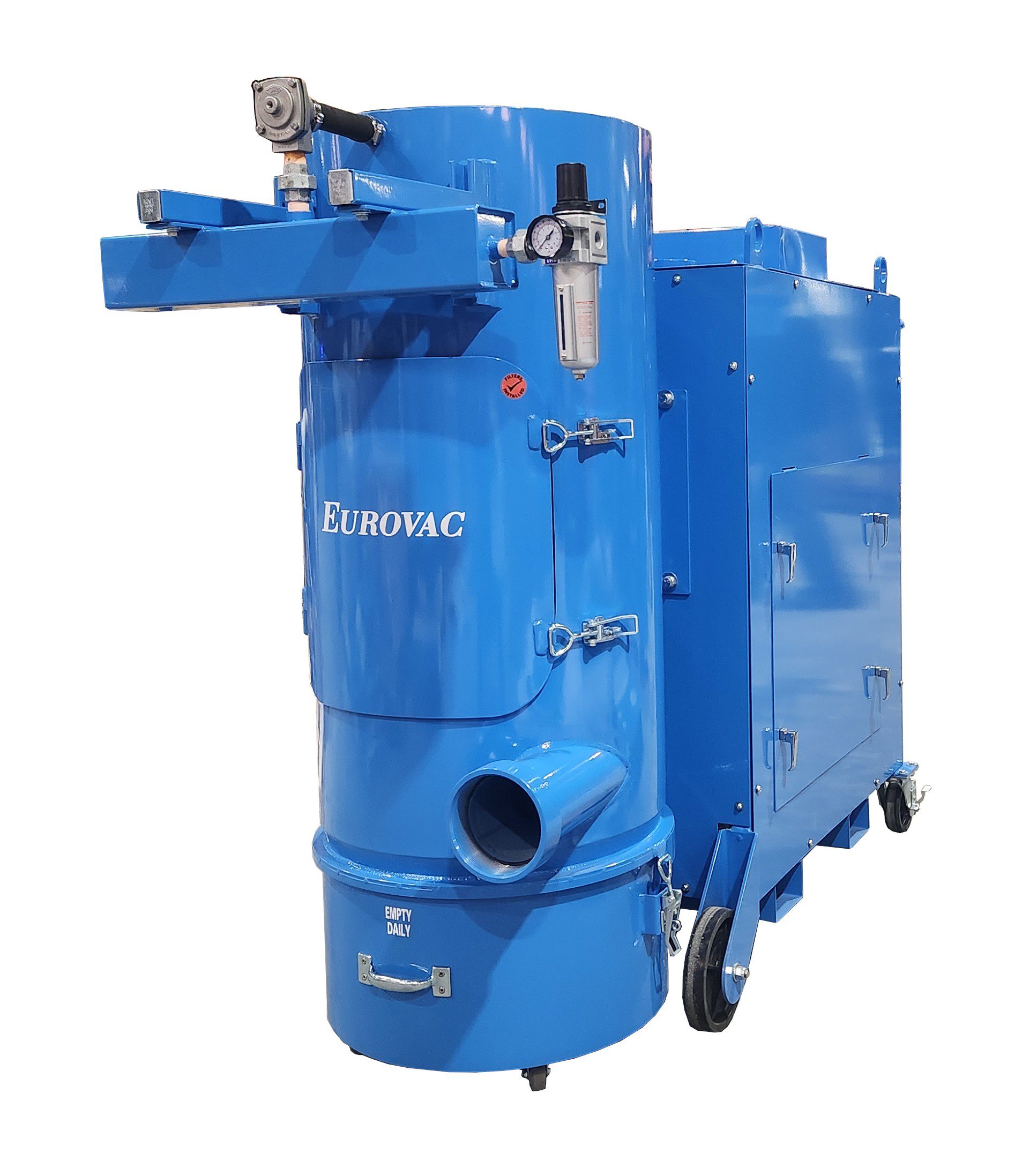

- EIP-W05-18144003: 5HP & 18” Filter Separator Portable
- EIP-W05-24144003: 5HP & 24” Filter Separator Portable
- EIP-W10-18144003: 10HP & 18” Filter Separator Portable
- EIP-W10-24144003: 10HP & 24” Filter Separator Portable
- EIP-W20-24144003: 15HP & 24” Filter Separator Portable
- EIP-P20-24244003: 20HP & 24” Filter Separator Portable
Equipment Specs:
- Construction: Fully welded steel construction
- Finished: Texture Black powder coated painted finish
- Blower: Regenerative Blower set to run for 20,000+ hours of continuous use
- Filtration: Cyclonic filter separator, after nanofiber cartridge filter (168 & 220 sq. ft. filter media) (99.93% efficient at 3 microns or larger) and final manual compressed air pulse jet cleaning
- Canister: 20 Gallon (5HP & 10HP), 30 Gallon (15HP & 20HP)
- Controls: Starter with overload protection
- Electrical: 208-240, 460 and 575 volts. 3 phase, 60 hertz
- Inlets: 3″OD (5HP & 10HP), 4”OD (15HP), 5”OD (20HP)
System Performance:
- Vacuum – 100″WC
- Flow – 160 CFM
Includes
- Silencer, Exhaust Cap & Air Filter Regulator (For Pulse Jet Cleaning)
- Pre-wiring from panel to pump
- Magnahelic gauge (Indicates when pressure differential is too high and filters need replacement)
Not Included
- Electrical Disconnect
- Three phase cord and plug
Optional Additions
- HEPA Filtration (HEP-R17-1B0300RP)
- 2.3HP to 5HP: 208-230-240, 1 Phase, 60 Hz Electrical
- Inlet Manifolds: Qty 3 to 6 – 1.5” Inlets
