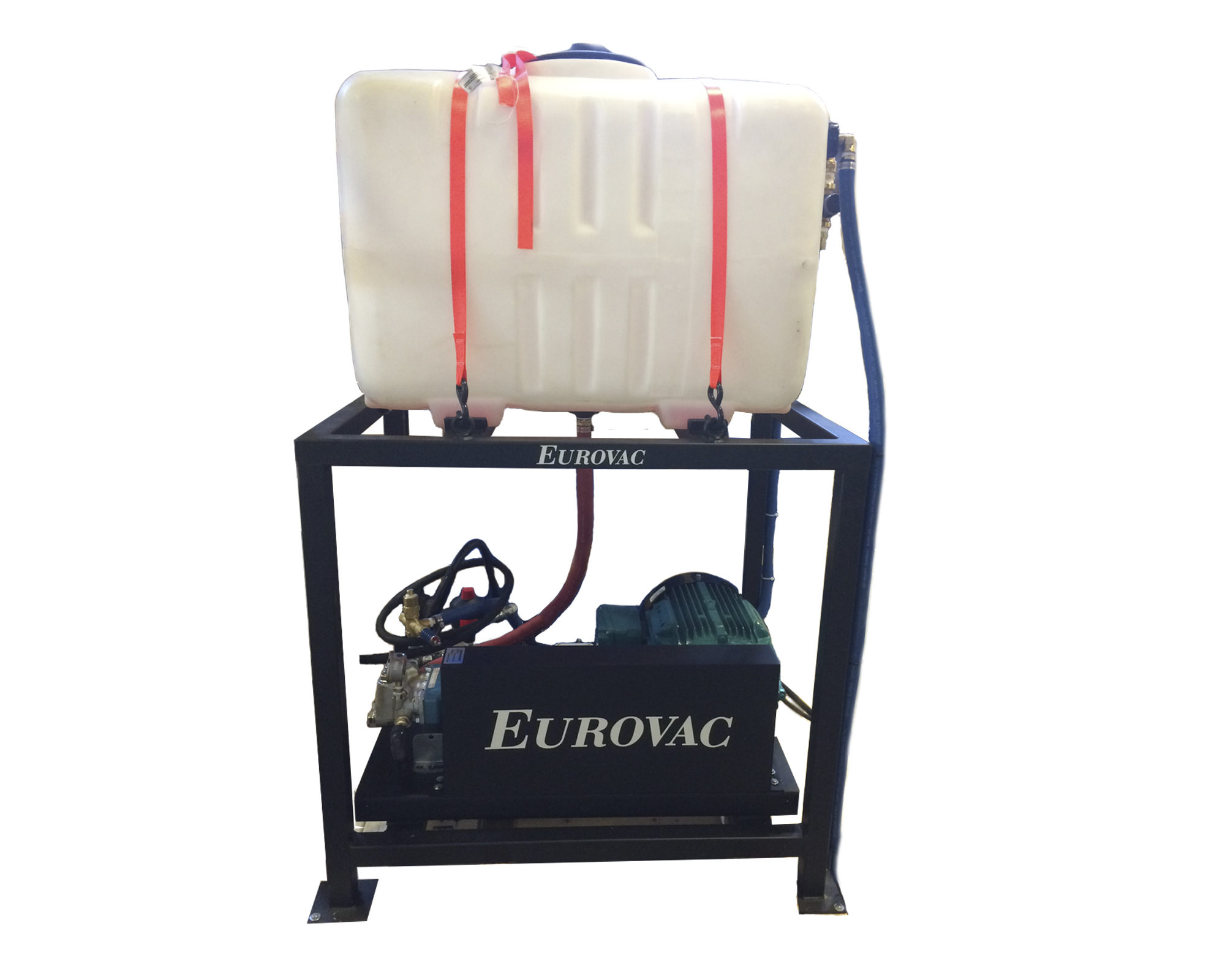

20HP & 30HP Pressure Washer Systems

Product Details

Comprehensive information about this product

20HP: 12 gpm @ 1500 psi maximum
30HP: 16 gpm @ 1500 psi maximum
VFD controlled (for energy saving and extended system component life)
100 Gallon (20HP) & 200 Gallon (25HP & 30HP) feed tank with pilot line for system activation and low water level shut down and auto reset
Automatic start/stop with off delay timer
Automatic high temp shut down (145deg)
Belt driven ceramic plunger pump
Adjustable pressure regulator with bypass hose
Back up safety relief valve
Discharge pressure gauge
Surge Relief Assembly w/ Bracket for absorbing back pressure when the trigger gun closes
Heavy duty base/frame with vibration isolation pads and protective pump cover
Water Connection: 1-1/4″ to 1-1/2″ (20HP & 30HP)
Electrical: 208-240, 460 and 575 volts. 3 phase, 60 hertz
