EII – 2.5HP Central Welding Vacuum System – Product

Product Overview

The EII 2.5HP Central Welding Vacuum System offers high vacuum performance for one technician vacuuming or using a source capture welding gun. The system is typically connected with galvanized tubing to conveniently located wall or hanging drops with a longest run of no more than 100’. If the EII 2.5HP System is needed for fume capture right near the unit, a vacuum inlet can be added to the system for use with a hose connection.

Product Details

Comprehensive information about this product

Application:

1 Tech Welding System

Part Number:

SYS-050-163L000N

Equipment Specs:

Blower: 2.5HP Brush Motor (4000 Hrs Intermittent Duty) – 1549 watt motor
Filtration: 14″ Cyclonic filter separator & final nanofiber cartridge filter (99.93% efficient at 3 microns or larger)
Canister: 10 Gallon canister
Controls (On/Off/Auto Switch): Set to Auto for wiring (24v) to Remote Start Switches. Controls include Automatic Shut Down After Set Period of Time (Auto shut down is adjustable from 1 to 30 minute’s)
Electrical: 115/1/60 – 13.9 amp (US / Canada) 15amp Circuit Req’d. Includes 12′ Electrical Cord
Inlet: 2″OD
Unit on Legs: (Wall mount version available upon request)
Dba: 70 @ 3M

System Performance:

Vacuum – 146.6″WC
Flow – 141.5 CFM

Optional Additions

System wall mount bracket (SYS-050-16300000)
2.5HP Brushless Motor (20,000 Hrs Continuous Use) – 20 Amp Circuit Required. Vacuum – 105″WC / Flow – 120 CFM
1-1/2” Inlet Valve (SYS-050-163L0010): Addition of inlet allows for direct plug in of work hose (instead of central tube/bends/fittings)

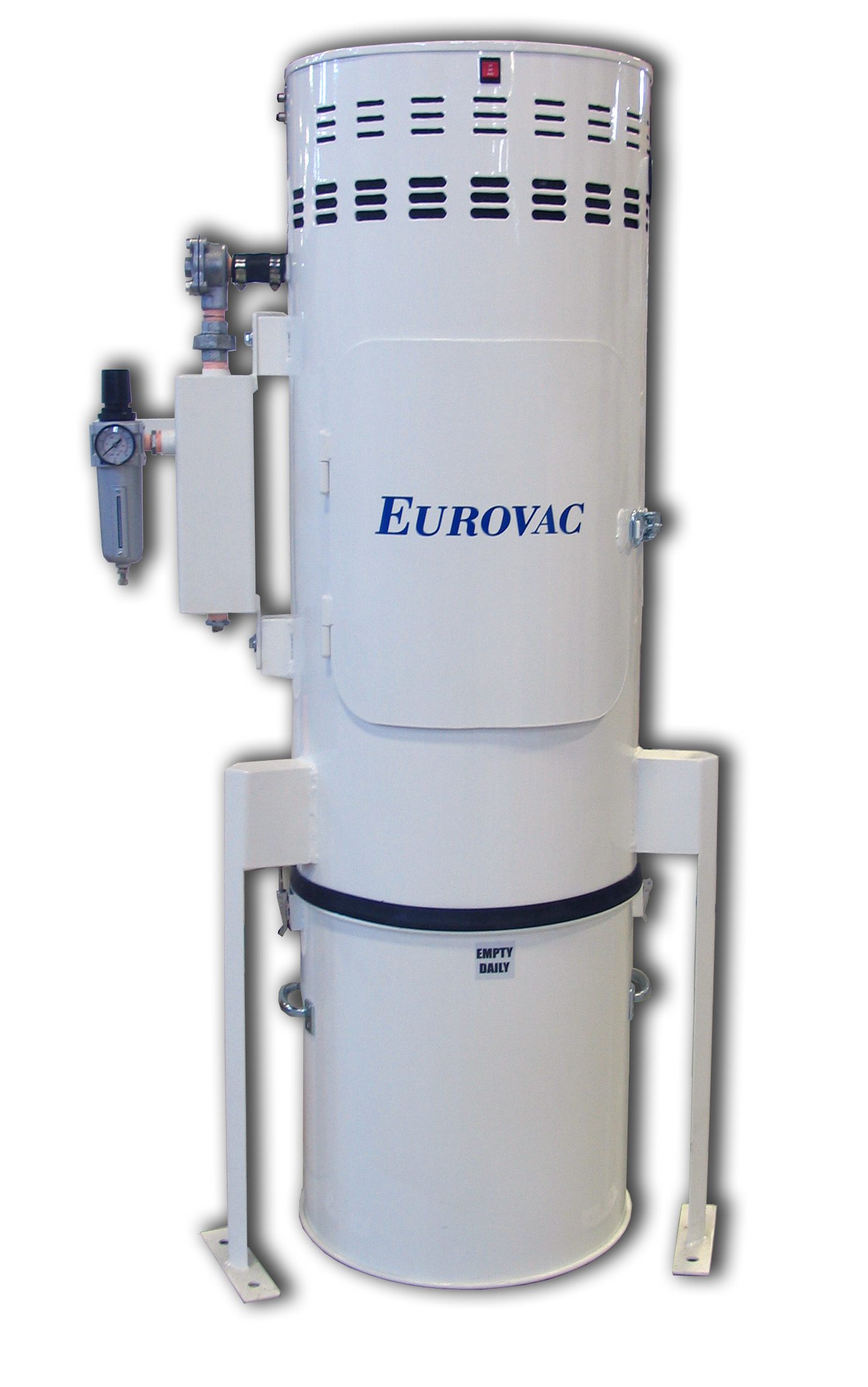

Automatic Pulse Jet Cleaning (SYS-050-163LAP00): System increases to 18” Diameter
HEPA Filtration (SYS-050-195)
