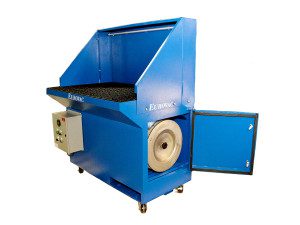

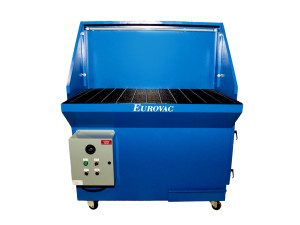

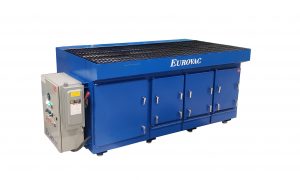

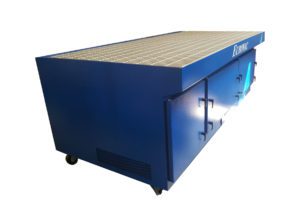

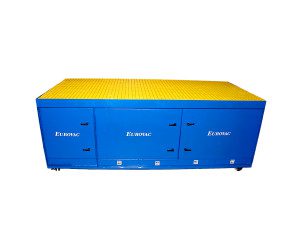

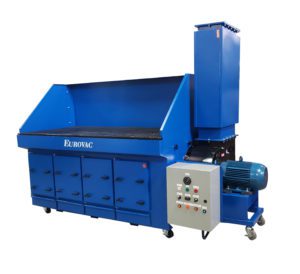

Downdraft Table (Weld Fumes & Sanding/Grinding Dust)

Product Overview

Eurovac offers a wide variety of Downdraft Tables which delivers a user friendly dust or fume capture solution for parts of varying sizes. Eurovac Downdraft Tables are made for an industrial environment with high end filtration and industrial grade fans to ensure the tables perform day in and day out with very little maintenance.

Product Details

Comprehensive information about this product

Part Numbers (Dust Applications):

DDT-2X3-D1201000: 2.5’ x 3’ – 2HP Downdraft Table w/ Fiberglass Grating
DDT-3X4-D4603000: 3’ x 4’ – 3HP Downdraft Table w/ Fiberglass Grating
DDT-3X6-D4603000: 3’ x 6’ – 5HP Downdraft Table w/ Fiberglass Grating
DDT-4X6-D4603000: 4’ x 6’ – 7.5HP Downdraft Table w/ Fiberglass Grating
DDT-4X8-D4603000: 4’ x 8’ – 10HP Downdraft Table w/ Fiberglass Grating

Part Numbers (Fume & Steel Grinding Applications):

DDT-2X3-F1201000: 2.5’ x 3’ – 2HP Downdraft Table w/ Steel Grating
DDT-3X4-F4603000: 3’ x 4’ – 3HP Downdraft Table w/ Steel Grating
DDT-3X6-F4603000: 3’ x 6’ – 5HP Downdraft Table w/ Steel Grating
DDT-4X6-F4603000: 4’ x 6’ – 7.5HP Downdraft Table w/ Steel Grating
DDT-4X8-F4603000: 4’ x 8’ – 10HP Downdraft Table w/ Steel Grating

Equipment Specs:

Construction: Fully welded steel construction
Finish: Texture blue powder coated painted finish
Filtration: Initial dust diverters, after cartridge filters (99.93% at 3 microns or larger) and final automatic compressed air pulse jet cleaning
Fan: Backward Incline Fan with Aluminum Impeller
Electrical: 208-240, 460 and 575 volts. 3 phase, 60 hertz Premium Efficiency TEFC Motor

Control Panel Specs:

NEMA 4/12 Enclosure (Indoor/Outdoor)
Single Button Start/Stop
Overload Protection
Motor Thermal Protection
Remote Operation Capability
Run Light
Smart Logic Controller
24VDC timed base pulse jet “On Line” Cleaning with “Off Line” manual pulse control
General Fault Light
