Name: Enclosed Shaker Dust Collectors
Brand: Eurovac
Availability: InStock

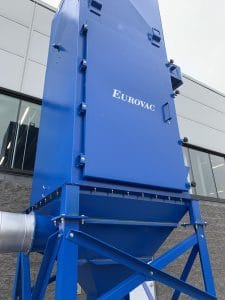

Enclosed Shaker Dust Collectors

Product Overview

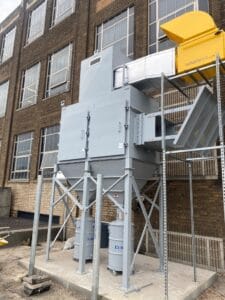

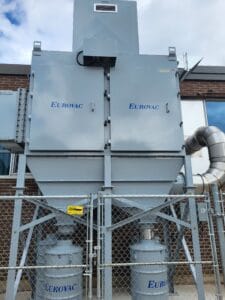

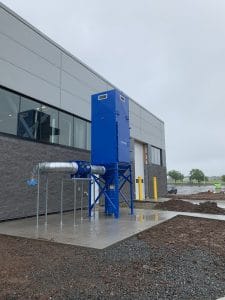

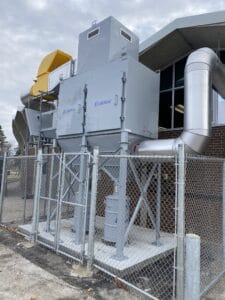

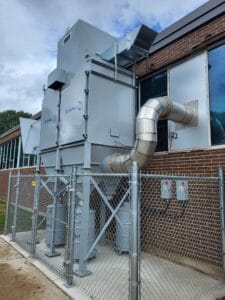

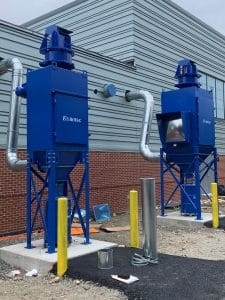

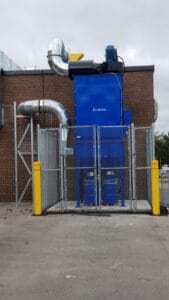

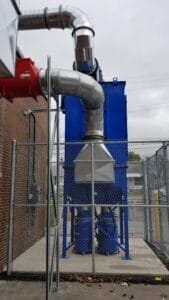

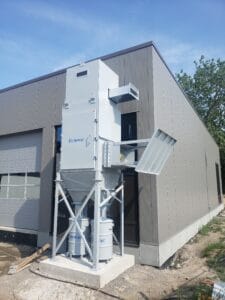

The modular concept design of Enclosed Shaker Dust Collectors allows for single or multiple filter vessels and requires a limited footprint for interior or exterior installation. The motorized shaker ensures your collector will continue to operate at a high performing level as it automatically dislodges the trapped dust on the filters surface and drops the particulate to the canister below. Enclosed Shaker Collectors can be designed with all the needed safety devices to ensure the system is up to code for safe operation.

Product Details

Comprehensive information about this product

Part Numbers:

PDC-03D- 01700000: Motorized Shaker Collector (170 Sq Ft Filter Media) – One 55 Gallon Canister
PDC-05D- 02600000: Motorized Shaker Collector (260 Sq Ft Filter Media) – One 55 Gallon Canister
PDC-10D- 03500000: Motorized Shaker Collector (352 Sq Ft Filter Media) – One 55 Gallon Canister
PDC-15D- 04500000: Motorized Shaker Collector (453 Sq Ft Filter Media) – One 55 Gallon Canister
PDC-20D- 05700000: Motorized Shaker Collector (570 Sq Ft Filter Media) – One 55 Gallon Canister
PDC-25D- 07000000: Motorized Shaker Collector (700 Sq Ft Filter Media) – Two 55 Gallon Canisters
PDC-30D- 09000000: Motorized Shaker Collector (900 Sq Ft Filter Media) – Two 55 Gallon Canisters
PDC-30D- 11400000: Motorized Shaker Collector (1140 Sq Ft Filter Media) – Two 55 Gallon Canisters
PDC-40D- 13500000: Motorized Shaker Collector (1350 Sq Ft Filter Media) – Three 55 Gallon Canisters

Equipment Specs:

Construction: Fully welded steel construction
Finish: Texture blue powder coated painted finish
Filtration: Pocket Filter(s) with glazed surface for minimal dust adherence. .5HP Shaker motor is connected to oscillating rod/shaft for filter cleaning
Inlet: Deflector at inlet to ensure larger particulates are directed at collection canister
Canister: 55 Gallon Drums include dollies for easy displacement of drum when full of dust
Electrical: 208-240, 460 and 575 volts. 3 phase, 60 hertz Premium Efficiency TEFC Motor

Control Panel Specs:

NEMA 4 Enclosure (Indoor/Outdoor)
Start/Stop
Overload Protection
Run Light
Hour Meter
120v Step Down Transformer (ie: Control remote on/off switches)
Shaker Cleaning: Shaker motor will start and run for a set time after the system fan is turned off. For additional filter cleaning, panel can be switched to manual mode
