Product Details
Comprehensive information about this product

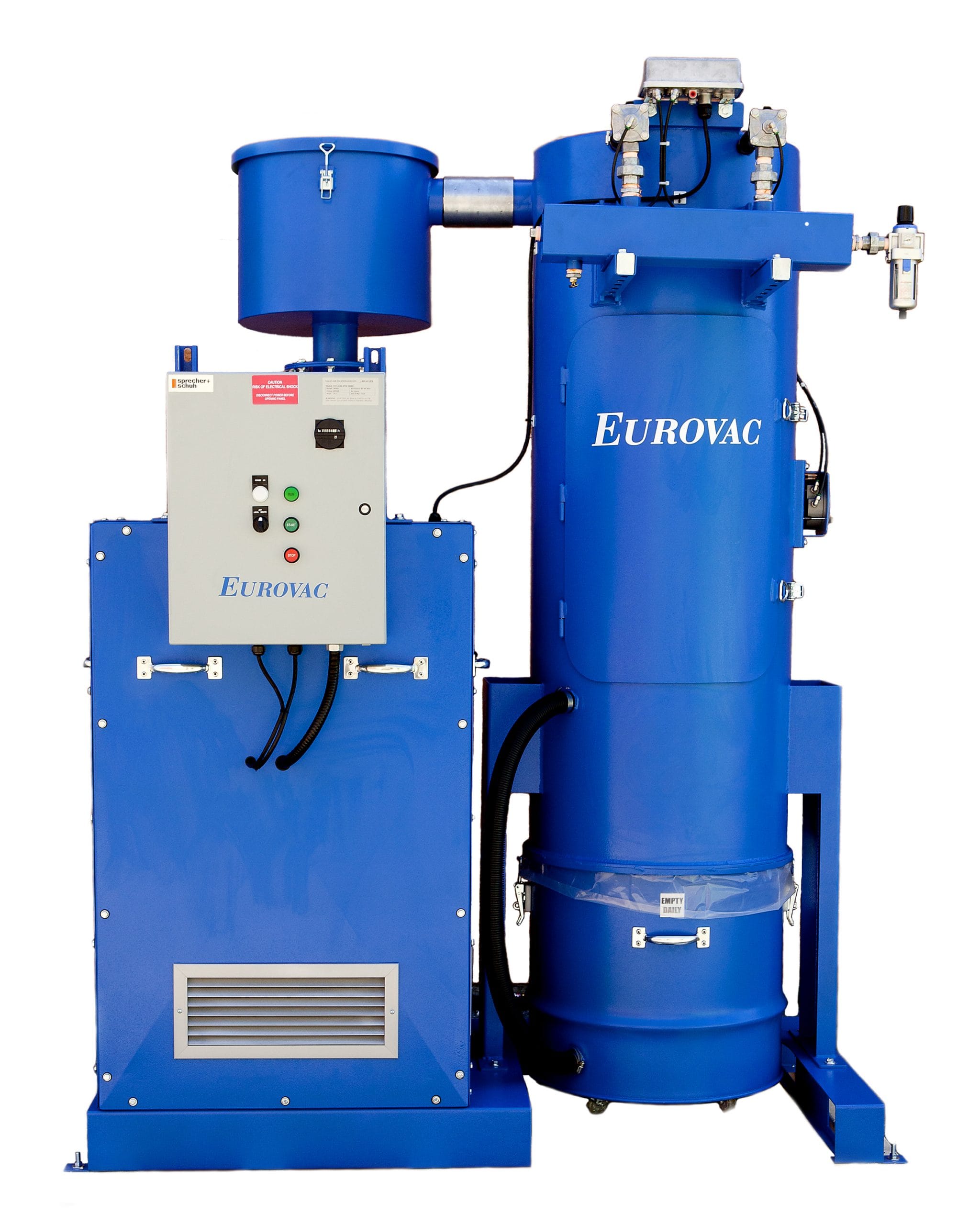

Application:
- 4 & 5 Tech Welding Vacuum System
Part Number:
- EIC-W16-30232003: 15HP System
- EIC-W20-30232003: 20HP System
Equipment Specs:
- Design: Skid mount system (for easy transportation) which comes pre-wired from panel to pump and to the pulse jet cleaning
- Blower: Regenerative Blower set to run for 20,000+ hours of continuous use
- Filtration: Cyclonic filter separator, 2 after nanofiber cartridge filters (440 sq. ft. filter media) (99.93% efficient at 3 microns or larger) and final automatic pulse jet cleaning
- Canister: 30 Gal
- Electrical: 208-240, 460 and 575 volts. 3 phase, 60 hertz
Control Panel Specs
- NEMA 4 Enclosure (Indoor/Outdoor)
- Start/Stop
- Overload Protection
- Run Light
- 120v Step Down Transformer (ie: Control remote on/off switches)
- 24VDC Sequential On Demand Auto Pulse Jet. Includes Proportional Type “On Line” Cleaning, “Off Line” Cleaning
- Filter Differential Pressure (dp) Display
- Dirty Filter Fault Shutdown/Light (c/w external reset)
- General Pulse Jet Fault Light
System Performance:
- 15HP System
- Vacuum – 120″WC
- Flow – 550 CFM
Includes
- Silencer, Exhaust Cap, 4 Anti Vibration Pads & Wedge Anchors
- Pre-wiring from panel to pump
- Air Filter Regulator (For Pulse Jet Cleaning)
Not Included
- Electrical Disconnect
Optional Additions
- HEPA Filtration (HEP-R17-1B0300RP)
