Name: EII – 3.9HP Grinding Portable
Brand: Eurovac
Availability: InStock

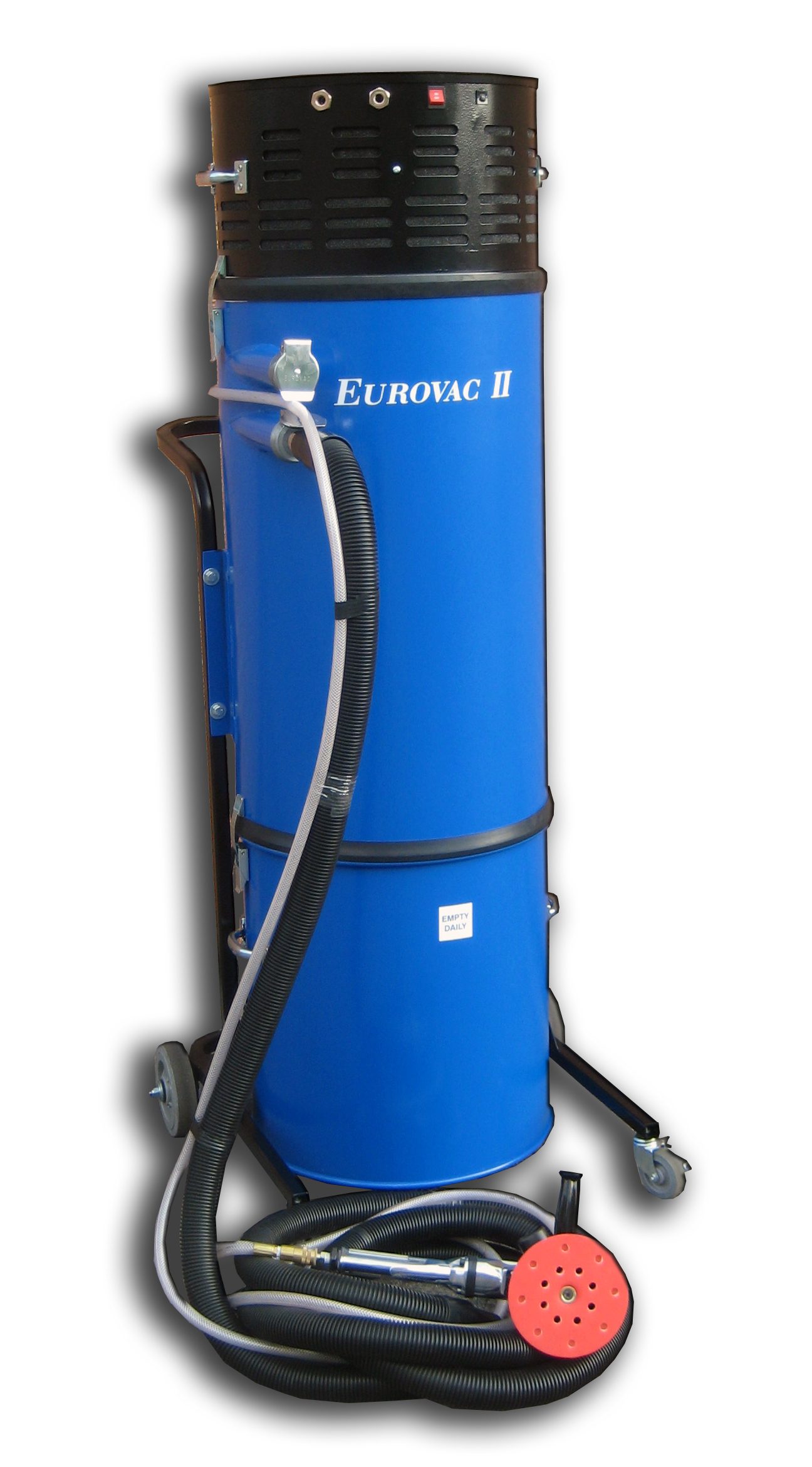

EII – 3.9HP Grinding Portable

Product Overview

The EII 3.9HP Grinding Portable is designed for demanding dust extraction operations with 1 to 2 technicians using source capture tools at the same time. In particular, it has the suction capacity needed to capture dust from high RPM Rotary Grinders. The Grinding Portable can also be utilized for housekeeping to assist in maintaining a clean shop.

Product Details

Comprehensive information about this product

Application:

1 to 2 Tech Grinder Vacuum System

Part Number:

SYS-050-18200000

Equipment Specs:

Construction: Fully welded steel construction
Finish: Texture Blue powder coated painted finish
Blower: 3.9HP Brush Motor (4000 Hrs Intermittent Duty)
Filtration: Cyclonic Filter Separator & Final Polyester Cartridge Filter (99.93% at 3 microns or larger). Includes Manual Pulse Back Flap for Filter Cleaning
Controls (On/Off/Auto Switch): Auto position will start and stop portable based on if pneumatic or electric tool is in operation
Electrical: 115 Volt 1Ph 60Hz, 13.9 amp, 1512 Watt (US / Canada). Includes 15′ (4.55M) Electrical Cord
Adjustable Vacuum Performance: Manual Speed Dial
Canister: 20 Gallon
Inlet: Qty 2: 1-1/2″ Inlets

System Performance:

Vacuum – 70″WC
Flow – 245 CFM

Includes

Qty 1 – 1-1/2″ x 20′ Hoses w/ Airline
Qty 2 – Hose Hangers

Optional Additions

1-1/4” Hoses w/ Airline (For 4” to 5” Grinding Tool Application)

Resources

Download product brochures, manuals, and watch instructional videos for this product.

PDFs

EII 3.9HP Grinding Portable Brochure EII 3.9HP Grinding Portable Brochure (French)
