Product Details
Comprehensive information about this product
Part Numbers:
- SYS-BMW-B0040002: 2HP Wet Mix Collector w/ Drain Valve (400 CFM Application)
- SYS-BMW-B0060003: 3HP Wet Mix Collector w/ Drain Valve (600 CFM Application)
- SYS-BMW-B01000005: 5HP Wet Mix Collector w/ Drain Valve (1000 CFM Application)
- SYS-BMW-B01500007: 7.5HP Wet Mix Collector w/ Drain Valve (1500 CFM Application)
- SYS-BMW-B0200010: 10HP Wet Mix Collector w/ Drain Valve (2000 CFM Application)
- SYS-BMW-B0400015: 15HP Wet Mix Collector w/ Drain Valve (4000 CFM Application)
- SYS-BMW-B0500020: 20HP Wet Mix Collector w/ Drain Valve (5000 CFM Application)
- SYS-BMW-B0600025: 25HP Wet Mix Collector w/ Drain Valve (6000 CFM Application)
- SYS-BMW-B0800030: 30HP Wet Mix Collector w/ Drain Valve (8000 CFM Application)
- SYS-BMW-B1000040: 40HP Wet Mix Collector w/ Drain Valve (10000 CFM Application)
- SYS-BMW-B1200050: 50HP Wet Mix Collector w/ Drain Valve (12000 CFM Application)
- SYS-BMW-A1400075: 75HP Wet Mix Collector w/ Drain Valve (14000 CFM Application)
Equipment Specs:
- Construction/Finish: Carbon steel which is epoxy powder coat painted and treated with zinc oxide and rust inhibitor zinc primed and final powder coat finish

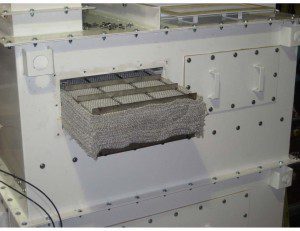

- Filtration: Initial venturi entry for deep penetration into the water, secondary baffles to completely mix the dust particulate with the water and final stainless steel mesh descicant mist eliminator(s) (99% efficient at 10 micron)
- Level Sensor: Automatic level control via an ultra sonic probe situated in a reservoir of “quiet” water

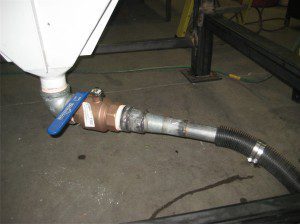

- Particulate Removal: Manual drain valve at bottom of separator
- Electrical: 208-240, 460 and 575 volts. 3 phase, 60 hertz Premium Efficiency TEFC Motor
PLC Control Panel Specs:
- NEMA 4 Enclosure (Indoor/Outdoor)
- Start/Stop
- Overload Protection
- Run Light
- Hour Meter
- 120v Step Down Transformer (ie: Control remote on/off switches)
- Automatic Water Fill
- Low or High Water Automatic Shut Off
- Provisions for venting gasses
- Fault Log
- Manual Control for diagnostic purposes
- Input and Output Status screens
- System Parameter Adjustments
- Fan Pressure and Amperage Monitor
- Differential Pressure Monitor
- User programmable run timer
Includes

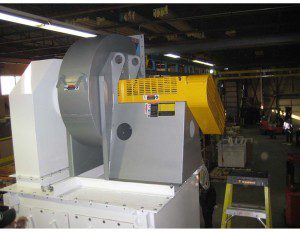

- Backward Incline Fan with Aluminum Impeller
Not Included
- Electrical Disconnect
Optional Additions
- Stainless Steel Construction
- Hydrogen Relief Vent (For aluminum applications)
- 2 Micron Mist Eliminator
- Inlet Entry Spray Nozzles (Helps “knock down” fine particulate)
- Upgrade from Manual to Automatic Drain Valve for particulate removal

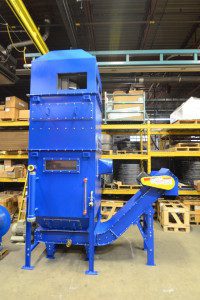

- Upgrade from Manual Drain Valve to Conveyor for particulate removal
