Product Details
Comprehensive information about this product
Application:

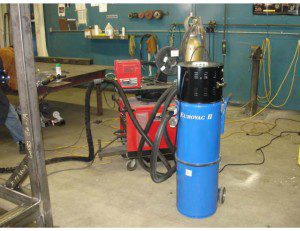

- 1 Tech Source Capture Welding System
- 1 Tech Housekeeping Vacuum System
Part Numbers:

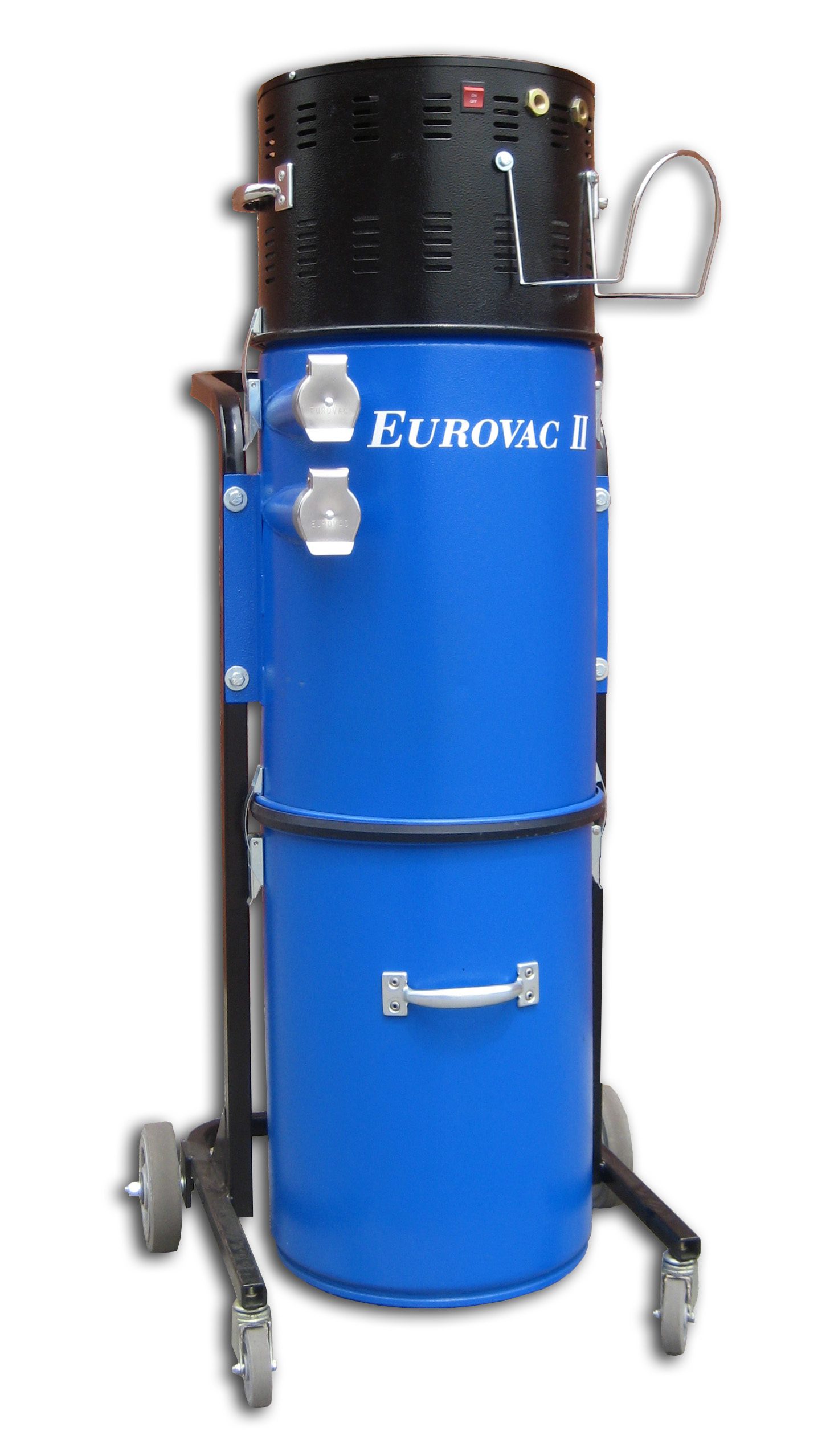

- SYS-050-18600000: Compact Cyclonic Portable (5 Gallon Can)
- SYS-050-18500200: Cyclonic Portable (10 Gallon Can)
Equipment Specs:
- Construction: Fully welded steel construction
- Finished: Texture Black powder coated painted finish
- Construction: Fully welded steel construction
- Finished: Texture Black powder coated painted finish
- Blower: 2.5HP Brush Motor (4000 Hrs Intermittent Duty)
- Filtration: Cyclonic Separation with Internal Wall Guarding Filter from the Dust Upon Entry (removes 85%+ of the dust). Secondary Polyester Cartridge Filter (99.93% at 3 microns or larger) and Final HEPA Filter.
- Controls (On/Off): 2 Position Switch
- Electrical: 115 Volt 1Ph 60Hz, 13.9 amp, 1512 Watt (US / Canada). Includes 15′ (4.55M) Electrical Cord
- Inlets: Qty 2: 1-1/2″ Inlets
System Performance:
- Vacuum – 113.4″WC
- Flow – 115.7 CFM
Includes
- 1.5” x 17’ Hose
- Hose Hanger
Optional Additions
- Magnahelic gauge (Indicates when pressure differential is too high and filters need replacement) (HAR-BAK-MAGKIT0P)
Resources
Download product brochures, manuals, and watch instructional videos for this product.
