Body Shop Specialized Repair Equipment

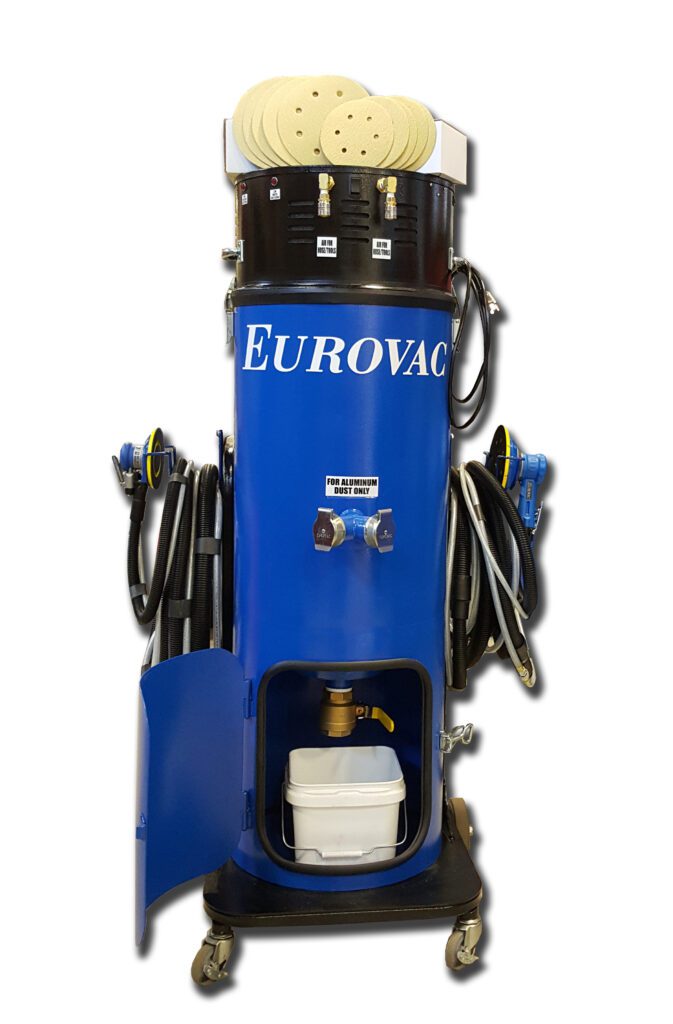

EII – Wet Mix Dust Collector

PART # SYS-050-18300000

• Wet mix dust collector, fabricated from 14 gauge stainless steel which is then thermoset powder coat painted.
• Manual water level system whereby the customer fills the unit with more water when the water level gets to a certain level marked on the site glass.
• Manual drain valve located at the bottom of the separator.
• Initial stainless steel venturi entry for deep penetration into the water, secondary baffles to completely mix the dust particulate with the water whereby no after dry/hepa filter is required.
• Site glass to visually check the water level.
• System includes (2) 25’ lightweight anti-static hose with attached airline

EI  – Central Wet Mix Dust Collector

• 5, 10 & 20HP regenerative motors are available depending on your needs.
• Electrical control panel , automatic water level control system and automatic hydrogen relief valve.  Includes magnetic starter, overload protection with panel mounted stop/start and remote stop/start capability.
• Vacuum relief valve mounted between the separator & pump.
• Wet scrubber, fabricated from 12 gauge steel which is epoxy powder coat painted and treated with zinc oxide and rust inhibitor.  (Optional upgrade to stainless steel).
• Automatic water level control system via an ultra sonic probe situated in a reservoir of “quiet” water.
• Manual drain valve located at the bottom of the separator.
• Initial stainless steel venturi entry for deep penetration into the water, secondary baffles to completely mix the dust particulate with the water.  Final stainless steel mist eliminator.
• Site glass to visually check the water level.
• Relief valve set to automatically open when system is shut down for exhausting hydrogen gas build-up in an aluminum application.

Central Fume Extraction System

PART # SYS-000-FUMEARM0

• 1.5 HP Fan set to produce 900 CFM at 8” W.C.
• 6” x 4m (13.12’) articulated arm (other sizes available)
• Wall mounting bracket
• Self supporting joints and flexible hoses for easy placement with smooth bore tubing for unimpeded air movement

Portable Fume Extraction System – “Box Air”

PART # SYS-070-45006100

• 700 CFM @ Hood
• Spark Trap
• Large Wheels
• Cartridge Filter
• Single phase operation
• Arm Diameter: 6”
• Arm Length: 7

Portable Fume Extraction System – “Rollout”

PART # SYS-070-45106100

• 1 HP Fan set to produce 700 CFM at 8” W.C.
• Three stage high end filtration; aluminum mesh pre-filter which protects the cartridge filter from sparks and prefilters the air, followed by a spun bond polyester cartridge filter, and a final carbon after filter.
• Manual compressed air pulse jet cleaning.
